Metal Instruments Cases 1426 Series

• Top and bottom made in 20 gauge steel (for strength) finished in contempra grey or satin gulf blue.
• Easy to machine 0.064” thick aluminum panels front and rear.
• Rear panel and bottom of enclosure is vented.
• Front panel is satin black, rear panel matches case color.
• 6-32 Philips nickel plated screws and self-adhesive rubber feet included.
• Replacement screws 1421J6 (Pkg. of 6, 6-32 Philips head screws).

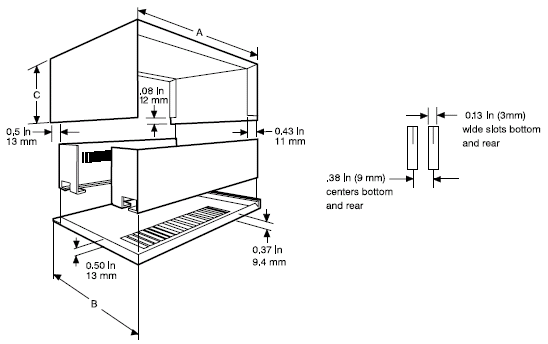

Part Number		Reader File	Units	Dimensions
Off White	Satin Blue			Width	Depth	Height
1426K $68.12	1426K-B $68.12		inch	6	5	4
			mm	152	127	102
1426M $70.97	1426M-B $70.97		inch	8	6	4
			mm	203	152	102
1426O $79.45	1426O-B $79.45		inch	10	7	4
			mm	254	178	102
1426Q $79.60	1426Q-B $79.60		inch	11	11.7	5.5
			mm	279	297	140
1426S $85.16	1426S-B $85.16		inch	12	6	4
			mm	305	152	102
1426V $85.16	1426V-B $85.16		inch	12	8	4
			mm	305	203	102
1426W $90.86	1426W-B $90.86		inch	12	10	4
			mm	305	254	102
1426Y $85.16	1426Y-B $85.16		inch	12	6	5.5
			mm	305	152	140

1-18-2023
