Instrument Enclosures (1452 Series)

Key Features:

20 gauge steel cover and 18 gauge base and frame (for strength) finished in contempra grey.
Easy to machine .064 thick aluminum panel painted satin black one side only.
Philips nickel plated screws and self-adhesive rubber feet included.


Part Number

Reader
File

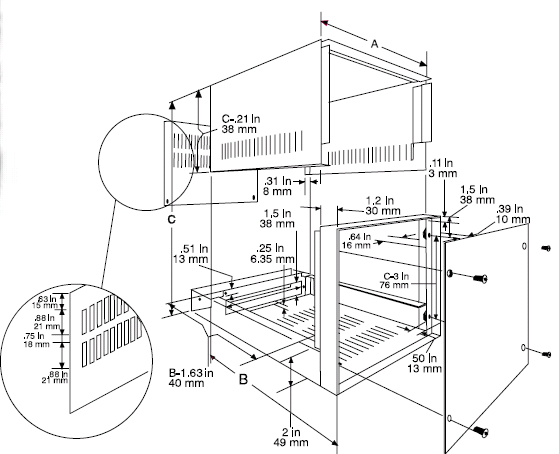

Drawing
File Size
AutoCAD
.dxf File
(zipped)
.zip
File Size

Units

Dimensions

Width

Depth

Height

1452DE11
$107.60

52K 46K inch 7.5 10.9 8.5
mm 191 277 216
1452FF13
$130.75

52K 46K inch 9.5 12.9 9.5
mm 241 328 241
1452FH17
$157.67

52K 46K inch 9.5 16.9 11.5
mm 241 429 292
1452GC6
$105.00

52K 46K inch 10.5 5.9 6.5
mm 267 150 165
1452HD7
$105.73

52K 46K inch 11.5 6.9 7.5
mm 292 175 191
1452KE9
$124.29

52K 46K inch 13.5 8.9 8.5
mm 343 226 216
1452PG9
$161.38

52K 46K inch 17.5 8.9 10.5
mm 445 226 267
