Sloped Aluminum Consoles (1456 Series)
Click Here To Enlarge
                                click to enlarge

Key Features (Aluminum Top & Bottom) - left & center above photo:

Aluminum cases 0.081 (2 mm) thick aluminum.
Aluminum top panel sizes to 14 wide are 0.064 thick aluminum. Larger sizes are 0.081 thick.
Sold pre-assembled with a textured blue case and a choice of an contempra grey (beige) or a black top panel.
Comes with self adhesive rubber feet and required mounting hardware.


Key Features (Aluminum Top & Walnut Case) - right above photo:

Solid oiled walnut sides on a black, ventilated steel base with contempra grey (beige) aluminum top panel.
Aluminum top panel sizes to 14 wide are 0.064 thick aluminum. Larger sizes are 0.081 thick.
Comes with self adhesive rubber feet and required mounting hardware.


0 Degree Version
10 Degree Version
15 Degree Version
30 Degree Version
No Slope
10 Degree Slope
15 Degree Slope
30 Degree Slope



No Slope

Part Number

Reader
File

Drawing
File Size
AutoCAD
.dxf File
(zipped)
.zip
File Size

Units

Dimensions

Beige Top
and Blue Case

Black Top
and Blue Case

Beige Top and
Walnut Case

Width

Depth

Rear
Height

Front
Height

1456NEK4WHBU
$30.84

1456NEK4BKBU
$30.84


36K 15K inch 6.0 10.0 4.0 4.0
mm 152 254 102 102

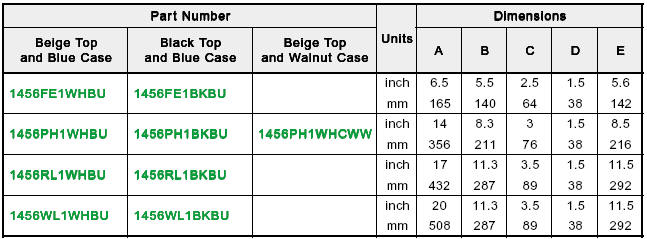

10 Degree Slope

Part Number

Reader
File

Drawing
File Size
AutoCAD
.dxf File
(zipped)
.zip
File Size

Units

Dimensions

Beige Top
and Blue Case

Black Top
and Blue Case

Beige Top
and Walnut Case

Width

Depth

Rear
Height

Front
Height

1456FE1WHBU
$23.66

1456FE1BKBU
$
23.66


39K 13K inch 6.5 5.5 2.5 1.5
mm 165 140 64 38
1456PH1WHBU
$
34.68

1456PH1BKBU
$
34.68

1456PH1WHCWW
$55.61

41K 15K inch 14 8.3 3 1.5
mm 356 211 76 38
1456RL1WHBU
$
41.36

1456RL1BKBU
$
41.36


42K 15K inch 17 11.3 3.5 1.5
mm 432 287 89 38
1456WL1WHBU
$48.85

1456WL1BKBU
$48.85


42K 15K inch 20 11.3 3.5 1.5
mm 508 287 89 38

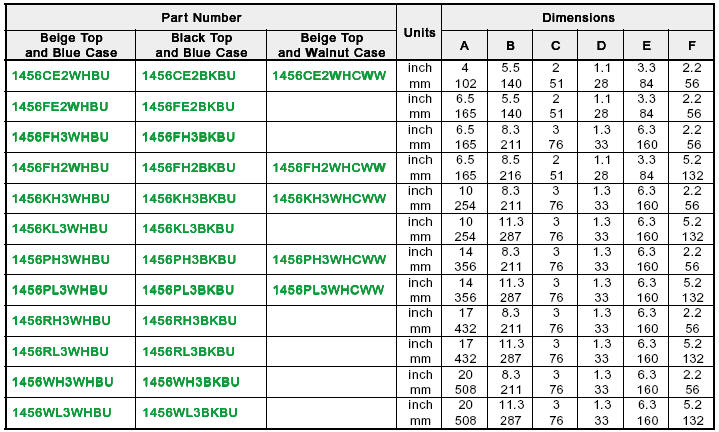

15 Degree Slope


Part Number

Reader
File

Drawing
File Size
AutoCAD
.dxf File
(zipped)
.zip
File Size

Units

Dimensions

Beige Top
and Blue Case

Black Top
and Blue Case

Beige Top
and Walnut Case

Width

Depth

Rear
Height

Front
Height

1456CE2WHBU
$21.13

1456CE2BKBU
$21.13

1456CE2WHCWW
$43.26

39K 13K inch 4 5.5 2 1.1
mm 102 140 51 28
1456FE2WHBU
$23.66

1456FE2BKBU
$23.66


34K 14K inch 6.5 5.5 2 1.1
mm 165 140 51 28
1456FH3WHBU
$
28.77

1456FH3BKBU
$28.77


40K 14K inch 6.5 8.3 3 1.3
mm 165 211 76 33
1456FH2WHBU
$25.83

1456FH2BKBU
$25.83

1456FH2WHCWW
$46.79

40K 14K inch 6.5 8.5 2 1.1
mm 165 216 51 28
1456KH3WHBU
$30.84

1456KH3BKBU
$30.84

1456KH3WHCWW
$51.11

41K 15K inch 10 8.3 3 1.3
mm 254 211 76 33
1456KL3WHBU
$33.84

1456KL3BKBU
$33.84


41K 15K inch 10 11.3 3 1.3
mm 254 287 76 33
1456PH3WHBU
$34.68

1456PH3BKBU
$34.68

1456PH3WHCWW
$55.62

42K 15K inch 14 8.3 3 1.3
mm 356 211 76 33
1456PL3WHBU
$37.25

1456PL3BKBU
$37.25

1456PL3WHCWW
$58.11

42K 15K inch 14 11.3 3 1.3
mm 356 287 76 33
1456RH3WHBU
$41.36

1456RH3BKBU
$41.36


42K 15K inch 17 8.3 3 1.3
mm 432 211 76 33
1456RL3WHBU
$43.18

1456RL3BKBU
$43.18


42K 15K inch 17 11.3 3 1.3
mm 432 287 76 33
1456WH3WHBU
$47.00

1456WH3BKBU
$47.00


42K 15K inch 20 8.3 3 1.3
mm 508 211 76 33
1456WL3WHBU
$48.85

1456WL3BKBU
$48.85


41K 15K inch 20 11.3 3 1.3
mm 508 287 76 33

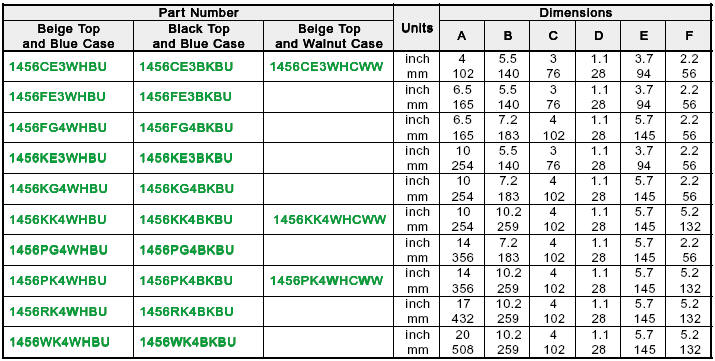

30 Degree Slope


Part Number

Reader
File

Drawing
File Size
AutoCAD
.dxf File
(zipped)
.zip
File Size

Units

Dimensions

Beige Top
and Blue Case

Black Top
and Blue Case

Beige Top
and Walnut Case

Width

Depth

Rear
Height

Front
Height

1456CE3WHBU
$21.13

1456CE3BKBU
$21.13

1456CE3WHCWW
$43.26

39K 13K inch 4 5.5 3 1.1
mm 102 140 76 28
1456FE3WHBU
$23.59

1456FE3BKBU
$23.66


40K 14K inch 6.5 5.5 3 1.1
mm 165 140 76 28
1456FG4WHBU
$25.83

1456FG4BKBU
$25.83


39K 14K inch 6.5 7.2 4 1.1
mm 165 183 102 28
1456KE3WHBU
$28.77

1456KE3BKBU
$28.77


41K 14K inch 10 5.5 3 1.1
mm 254 140 76 28
1456KG4WHBU
$30.84

1456KG4BKBU
$30.84


41K 15K inch 10 7.2 4 1.1
mm 254 183 102 28
1456KK4WHBU
$33.84

1456KK4BKBU
$33.84

1456KK4WHCWW
 $54.66

41K 15K inch 10 10.2 4 1.1
mm 254 259 102 28
1456PG4WHBU
$34.68

1456PG4BKBU
$34.68


41K 15K inch 14 7.2 4 1.1
mm 356 183 102 28
1456PK4WHBU
$37.25

1456PK4BKBU
$37.25

1456PK4WHCWW
$58.11

42K 15K inch 14 10.2 4 1.1
mm 356 259 102 28
1456RK4WHBU
$43.18

1456RK4BKBU
$43.18


43K 15K inch 17 10.2 4 1.1
mm 432 259 102 28
1456WK4WHBU
$48.85

1456WK4BKBU
$48.85


44K 16K inch 20 10.2 4 1.1
mm 508 259 102 28
