Multipurpose Translucent Polycarbonate Enclosures

Multipurpose Translucent Polycarbonate Enclosures (1591 T Series)
(Ice Blue, Clear & IR Red)

Key Features:

Ideally suited for mounting printed circuit boards.
Perfect for applications where parts, sensors or indicators need to be visible.
Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays.
Crystal Clear version is almost totally transparent.
IR Red version is almost totally transparent to infrared devices.

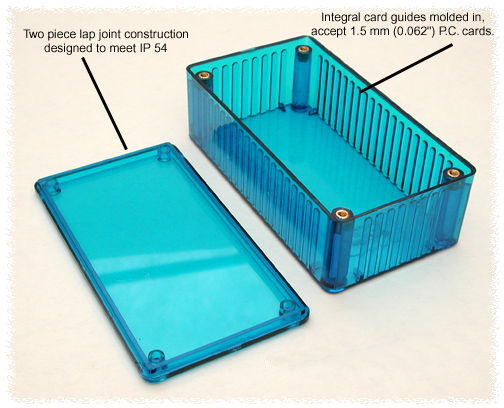

Integral card guides accept 1.5 mm (0.062”) P.C. cards.
Lap joint construction provides protection against access of dust and splashing water.
Designed to meet IP54.
Molded from flame retardant, easy to machine, translucent polycarbonate (material carries a UL flammability rating of 94V-0).

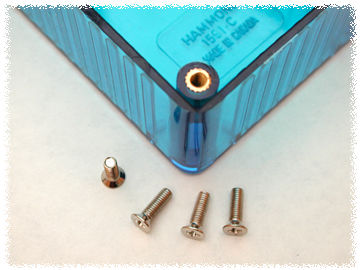

Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings.
Link here to photo tables of each part number (shown in Ice Blue)

Translucent Polycarbonate

Part Number Colours: BU=Ice Blue CL=CLear RD=IR Red
Part Number	Color	Reader File	Drawing File Size	AutoCAD .dwg Files (zipped)	.zip File Size	Units	Length	Width	Enclosure Depth (Less Lid)
1591ATBU $5.81 1591ATCL $5.81 1591ATRD $5.81	Ice Blue Clear IR Red		161K		316K	Inches	3.9	2.0	0.8
						mm	100	50	21
1591STBU $8.46 1591STCL $8.46 1591STRD $8.46	Ice Blue Clear IR Red		145K		220K	Inches	4.3	3.2	1.6
						mm	110	82	40
1591BTBU $6.30 1591BTCL $6.30 1591BTRD $6.30	Ice Blue Clear IR Red		148K		332K	Inches	4.4	2.4	1.1
						mm	112	62	27
1591CTBU $6.71 1591CTCL $6.71 1591CTRD $6.71	Ice Blue Clear IR Red		222K		251K	Inches	4.7	2.6	1.4
						mm	120	65	36
1591DTBU $9.91 1591DTCL $9.91 1591DTRD $9.91	Ice Blue Clear IR Red		154K		245K	Inches	5.9	3.2	1.8
						mm	150	80	46
1591ETBU $11.84 1591ETCL $11.84 1591ETRD $11.84	Ice Blue Clear IR Red		151K		259K	Inches	7.5	4.3	2.2
						mm	191	110	57
