Multipurpose Plastic Enclosures (1591 Series)
Flame Retardant ABS Plastic Version

Beige	Black	Blue	Grey

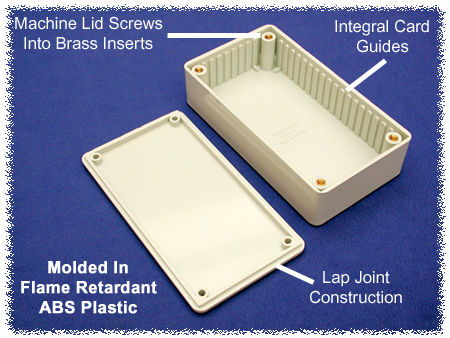

• Ideally suited for vertical mounting of printed circuit boards (internal side walls include card guides - see photo below).
• Integral card guides accept 1.5 mm (0.062”) P.C. cards.
• If card guides are not required or horizontal mounting of printed circuit boards is preferred link to our 1591XX series.
• Lap joint construction provides protection against access of dust and splashing water.
• Designed to meet IP54.
• Molded from easy to machine flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
• Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required (see photo below).
• Link here to our more economical version (no brass inserts and molded in general purpose plastic) if required.
• Black enclosures include black screws, all others - standard nickel finish screws.
• Link here to photo tables of each part number (shown in grey).


Part Number Colours: BG=Beige   BK=Black   BU=Blue   GY=Grey

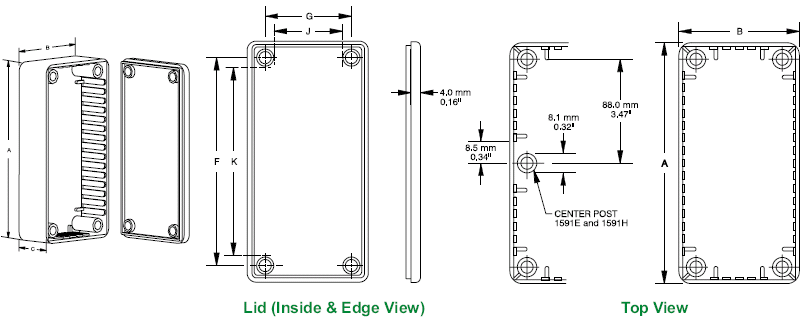

Part Number	Color	Reader File	Drawing File Size	AutoCAD .dwg Files (zipped)	.zip File Size	Units	Length	Width	Enclosure Depth (Less Lid)
1591MBG $5.32 1591MBK $5.32 1591MBU $5.32 1591MGY $5.32	Beige Black Blue Grey		151K		280K	Inches	3.3	2.2	0.8
						mm	85	56	21
1591LBG $5.92 1591LBK $5.92 1591LBU $5.92 1591LGY $5.92	Beige Black Blue Grey		148K		212K	Inches	3.3	2.2	1.4
						mm	85	56	35
1591ABG $6.04 1591ABK $6.04 1591ABU $6.04 1591AGY $6.04	Beige Black Blue Grey		161K		316K	Inches	3.9	2.0	0.8
						mm	100	50	21
1591SBG $7.04 1591SBK $7.04 1591SBU $7.04 1591SGY $7.04	Beige Black Blue Grey		145K		220K	Inches	4.3	3.2	1.6
						mm	110	82	40
1591BBG $6.70 1591BBK $6.70 1591BBU $6.70 1591BGY $6.70	Beige Black Blue Grey		148K		332K	Inches	4.4	2.4	1.1
						mm	112	62	27
1591CBG $7.09 1591CBK $7.09 1591CBU $7.09 1591CGY $7.09	Beige Black Blue Grey		222K		251K	Inches	4.7	2.6	1.4
						mm	120	65	36
1591TBG $10.74 1591TBK $10.74 1591TBU $10.74	Beige Black Blue		142K		203K	Inches	4.7	3.2	2.2
						mm	120	80	55
1591UBG $8.34 1591UBK $8.34 1591UBU $8.34 1591UGY $8.34	Beige Black Blue Grey		111K		273K	Inches	4.7	4.7	2.2
						mm	120	120	55
1591VBG $10.86 1591VBK $10.86 1591VBU $10.86 1591VGY $10.86	Beige Black Blue Grey		131K		191K	Inches	4.7	4.7	3.5
						mm	120	120	90
1591GBG $7.73 1591GBK $7.73 1591GBU $7.73 1591GGY $7.73	Beige Black Blue Grey		154K		344K	Inches	4.8	3.7	1.2
						mm	121	94	30
1591DBG $10.37 1591DBK $10.37 1591DBU $10.37 1591DGY $10.37	Beige Black Blue Grey		154K		245K	Inches	5.9	3.2	1.8
						mm	150	80	46
1591HBG $6.55 1591HBK $6.55 1591HBU $6.55 1591HGY $6.55	Beige Black Blue Grey		171K		566K	Inches	6.5	2.8	1.0
						mm	165	71	25
1591EBG $9.96 1591EBK $9.96 1591EBU $9.96 1591EGY $9.96	Beige Black Blue Grey		151K		259K	Inches	7.5	4.3	2.2
						mm	191	110	57

NOTES:

• Add 0.16" (4 mm) to enclosure depth for lid
• Link here to our flanged lid version
• Link here to our bottom flange version

ABS Version Features:

Flange Kits:

Top View click to enlarge	Bottom View click to enlarge
Link here for more details

P.C. Board Card Adaptors:

Replacement Screws:

Part Number 1591MS100 $3.71 Package of 100 M3 - 0.5 X 10mm	Part Number 1591MS100BK $5.33 Package of 100 M3 - 0.5 X 10mm - Black

Molded from tough nylon (choice of Black or Grey). Includes 2 nylon screws (insulated to avoid internal interference). Mounting template included. Black - Part Number 1599CLIP $0.88 Grey - Part Number 1599CLIPGY  $0.88

Clear Lids:

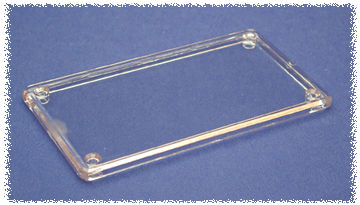

Clear Polycarbonate - flame retardant material Enclosure is NOT included For clear lid and enclosure - see our 1591"T" series Part Number Use With Enclosure Series 1591LC $3.33 1591L & 1591M 1591AC $2.44 1591A 1591BC $2.53 1591B 1591CC $2.79 1591C 1591DC $4.33 1591D 1591EC $4.70 1591E 1591GC $4.19 1591G 1591HC $4.26 1591H 1591SC $3.64 1591S 1591TC $3.85 1591T 1591UC $4.61 1591U 1591VC $4.61 1591V
