Plastic Hand Held Enclosures

Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Link here to our more economical version (no inserts and molded in general purpose plastic).
Recessed top for membrane display or pad.
Lap joint construction provides protection against dust accumulation and splashing water.
Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
Designed to meet IP54.

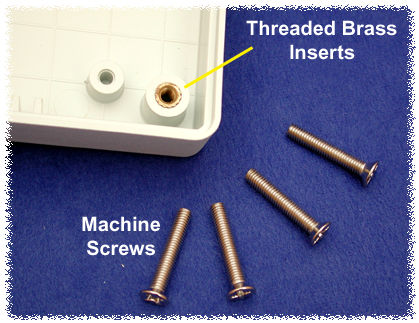

Lid is secured with Philips machine screws, threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
Link here to photo tables of each part number (No Battery Door)
Link here to photo tables of each part number (With Battery Door)

Part numbers above ending in "BAT" include a battery door (shown below)

Battery Door Closed	Battery Door Open

Accessories

Screws:

Accessory screws for mounting P.C. boards into standoffs (#4 x 1/4" pan head)

P/N 1593ATS50 (qty. 50)
$5.67

P/N 1593ATS100 (qty. 100)
$7.15

Replacement machine screw, used in flame retardant ABS 1599B series (ie...with brass inserts). M3 - 0.5 x 20 mm

1594MS100 - Package of 100
$3.08
Replacement machine screw, used in flame retardant ABS 1599E, H & K series (ie...with brass inserts). M3 - 0.5 x 10 mm

1591MS100 - Package of 100
$3.98

Belt / Pocket Clip Option:

Black - Part Number	1599CLIP $0.88
Grey - Part Number	1599CLIPGY $0.88

Battery Holder Kits:

Part Number	Battery Holder Kit For:	Fits Battery Door Enclosure Size:
BH1AAWKIT $1.02	1 AA Cell	1599B, 1599E, 1599H & 1599K series
BH2AAWKIT $1.05	2 AA Cells	1599B, 1599E, 1599H & 1599K series
BH1AAAWKIT $0.92	1 AAA Cell	1599B, 1599E, 1599H & 1599K series
BH2AAAWKIT $1.14	2 AAA Cells	1599B, 1599E, 1599H & 1599K series
BH3AAAWKIT $1.65	3 AAA Cells	1599E, 1599H & 1599K series
BH4AAAWKIT $1.97	4 AAA Cells	1599E, 1599H & 1599K series
BS61KIT $1.63	1 - 9V Cell	1599B, 1599E, 1599H & 1599K series

Battery Dividers:

Grey ABS plastic panel barriers which insert vertically into the P.C. card guides.

Part Number	Color	Battery Door	Belt Clip	Reader File	Drawing File Size	AutoCAD .dxf & .dwg Files (zipped)	.zip File Size	Units	Length	Width	Enclosure Depth (Includes Lid)
1599BBK $6.76 1599BGY $6.76	Black Grey	No	No		112K		105K	Inches	5.12	2.56	0.97
								mm	130	65	25
1599BBKBAT $8.53 1599BGYBAT $8.53	Black Grey	Yes	No		124K		106K	Inches	5.12	2.56	0.97
								mm	130	65	25
1599BBKCP $10.14 1599BGYCP $10.14	Black Grey	No	Yes		112K		105K	Inches	5.12	2.56	0.97
								mm	130	65	25
1599BBKBATCP $10.61 1599BGYBATCP $10.61	Black Grey	Yes	Yes		124K		106K	Inches	5.12	2.56	0.97
								mm	130	65	25
1599EBK $8.23 1599EGY $8.23	Black Grey	No	No		128K		103K	Inches	6.70	3.35	1.33
								mm	170	85	34
1599EBKBAT $10.15 1599EGYBAT $10.15	Black Grey	Yes	No		151K		104K	Inches	6.70	3.3	1.33
								mm	170	85	34
1599HBK $10.07 1599HGY $10.07	Black Grey	No	No		134K		112K	Inches	8.66	4.33	1.73
								mm	220	110	44
1599HBKBAT $13.73 1599HGYBAT $13.73	Black Grey	Yes	No		131K		114K	Inches	8.66	4.33	1.73
								mm	220	110	44
1599KBK $8.02 1599KGY $8.02	Black Grey	No	No		116K		97K	Inches	8.66	5.5	1.60
								mm	220	140	40.5
1599KBKBAT $14.91 1599KGYBAT $14.91	Black Grey	Yes	No		124K		100K	Inches	8.66	5.5	1.60
								mm	220	140	40.5
