Eclipse Junior Series — NEMA 12, 13, 4
Single Door Enclosures
Application

  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
  • For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Impressive styling features make the Eclipse Junior a suitable addition to any high—tech equipment installation.
  • For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards
  • UL 508 Type 3R, 4, 12 and 13
  • CSA Type 3R, 4, 12 and 13
  • Complies with
    • NEMA Type 3R, 4, 12 and 13
    • IEC 60529, IP66

Construction
  • Body and cover are formed from 16 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts, or holes.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • 14 gauge welded brackets provide for enclosure mounting.
  • Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Quarter turn latches formed from black zinc diecast.
  • Oil resistant gaskets are permanently secured.
  • Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
  • Internal threaded weld studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • Includes grounding kit and a hardware kit with panel mounting screws.

Finish
  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
  • Inner panels are unpainted galvanized steel.
Back to Top

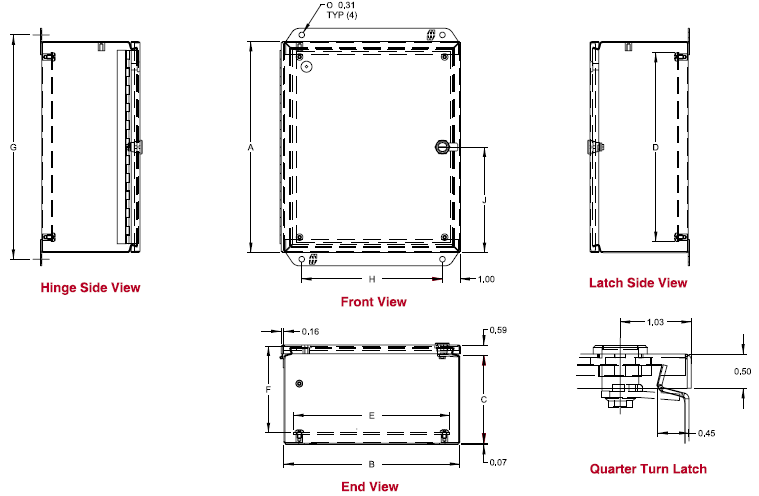

Part No. Overall Dimensions   Panel Size   Ship Wt.
(lbs)
A B C H G D E J F
EJ443
$40.70

 4.0 4.0 3.0 2.00 4.75 — — 2.00 — 2
EJ643
$48.82

 6.0 4.0 3.0 2.00 6.75 4.88 2.88 3.00 2.92 2
EJ683
$59.35

 6.0 8.0 3.5 6.00 6.75 4.88 6.75 3.00 3.42 5
EJ863
$60.55

 8.0 6.0 3.5 4.00 8.75 6.75 4.88 4.00 3.42 5
EJ444
$43.13

 4.0 4.0 4.0 2.00 4.75 — — 2.00 — 3
EJ644
$51.24

 6.0 4.0 4.0 2.00 6.75 4.88 2.88 3.00 3.92 3
EJ664
$55.41

 6.0 6.0 4.0 4.00 6.75 4.88 4.88 3.00 3.92 4
EJ884
$66.08

 8.0 8.0 4.0 6.00 8.75 6.75 6.88 4.00 3.92 7
EJ8104
$73.95

 8.0 10.0 4.0 8.00 8.75 6.88 8.75 4.00 3.92 8
EJ1084
$73.82

 10.0 8.0 4.0 6.00 10.75 8.75 6.88 5.00 3.92 8
EJ1264
$66.14

 12.0 6.0 4.0 4.00 12.75 10.75 4.88 6.00 3.92 8
EJ10125
$95.13

 10.0 12.0 5.0 10.00 10.75 8.88 10.75 5.00 4.92 10
EJ12105
$94.95

 12.0 10.0 5.0 8.00 12.75 10.75 8.88 6.00 4.92 12
EJ866
$68.00

 8.0 6.0 6.0 4.00 8.75 6.75 4.88 4.00 5.92 7
EJ1086
$85.12

 10.0 8.0 6.0 6.00 10.75 8.75 6.88 5.00 5.92 10
EJ10106
$92.81

 10.0 10.0 6.0 8.00 10.75 8.75 8.88 5.00 5.92 12
EJ12126
$162.12

 12.0 12.0 6.0 10.00 12.75 10.75 10.88 6.00 5.92 15
EJ12146
$120.18

 12.0 14.0 6.0 12.00 12.75 10.88 12.75 6.00 5.92 17
EJ1486
$110.45

 14.0 8.0 6.0 6.00 14.75 12.75 6.88 7.00 5.92 10
EJ14126
$119.99

 14.0 12.0 6.0 10.00 14.75 12.75 10.88 7.00 5.92 17
EJ14166
$142.76

 14.0 16.0 6.0 14.00 14.75 12.88 14.75 7.00 5.92 21
EJ16106
$120.46

 16.0 10.0 6.0 8.00 16.75 14.75 8.88 8.00 5.92 15
EJ16146
$142.49

 16.0 14.0 6.0 12.00 16.75 14.75 12.88 8.00 5.92 21
EJ12108
$113.71

 12.0 10.0 8.0 8.00 12.75 10.75 8.88 6.00 7.92 15
EJ14128
$137.21

 14.0 12.0 8.0 10.00 14.75 12.75 10.88 7.00 7.92 18
EJ16148
$154.98

 16.0 14.0 8.0 12.00 16.75 14.75 12.88 8.00 7.92 22
EJ161410
$167.58

 16.0 14.0 10.0 12.00 16.75 14.75 12.88 8.00 9.92 23
