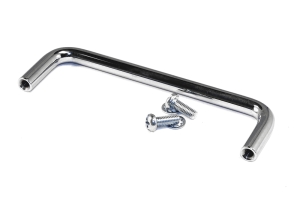

Round Metal Handles (1427 Series)

Key Features:

  • Chrome plated round steel
  • Sold singly
  • Hardware included
Part Number
Handle Mounting
Hole Centers
Height
Screw Thread
Thread Depth
Handle Diameter
Designed for Panel Height
1427B
$5.70
1.25" (31.8 mm)
0.625" (15.9 mm)
4-40
0.156" (3.96 mm)
0.187" (4.75 mm)
1.75" (1U)
1427B2
$6.39
1.25" (31.8 mm)
1" (25.4 mm)
6-32
0.25" (6.35 mm)
0.187" (4.75 mm)
1.75" (1U)
1427D
$6.27
1.75" (44.5 mm)
0.75" (19.1 mm)
4-40
0.25" (6.35 mm)
0.187" (4.75 mm)
5.25" (3U)
1427E
$6.27
2" (50.8 mm)
1" (25.4 mm)
6-32
0.25" (6.35 mm)
0.187" (4.75 mm)
5.25" (3U)
1427Q
$6.99
2.3" (58.4 mm)
0.95" (23.8 mm)
6-32
-
0.25" (6.35 mm)
5.25" (3U)
1427P
$6.99
2.8" (71.1 mm)
0.95" (23.8 mm)
6-32
-
0.25" (6.35 mm)
5.25" (3U)
1427G
$6.99
3" (76.2 mm)
1.75" (44.5 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
8.75" (5U)
1427N
$7.70
3.5" (88.9 mm)
1.2" (30.5 mm)
10-32
-
0.375 (9.53 mm)
8.75" (5U)
1427N2
$7.70
3.5" (88.9 mm)
1.5" (38.1 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
8.75" (5U)
1427C1
$6.39
4" (101.6 mm)
1.3" (33 mm)
10-32
0.562" (14.27 mm)
0.375 (9.53 mm)
8.75" (5U)
1427S
$6.99
4" (101.6 mm)
1.5" (38.1 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
8.75" (5U)
1427S2
$6.99
4" (101.6 mm)
1.75" (44.5 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
8.75" (5U)
1427T
$7.70
5" (127 mm)
1.5" (38.1 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
12.25" (7U)
1427T2
$7.70
5" (127 mm)
1.75" (44.5 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
12.25" (7U)
1427M
$6.99
5.3" (134.6 mm)
1.2" (30.5 mm)
10-32
-
0.375 (9.53 mm)
12.25" (7U)
1427W
$7.70
6" (152.4 mm)
1.5" (38.1 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
12.25" (7U)
1427W2
$7.70
6" (152.4 mm)
1.75" (44.5 mm)
8-32
0.562" (14.27 mm)
0.25" (6.35 mm)
12.25" (7U)
1427L
$8.42
7" (177.8 mm)
1.3" (33 mm)
10-32
0.5" (12.7 mm)
0.375 (9.53 mm)
14" (8U)

4-24-2024

Link here to photo tables of each part number
