Knockdown Heavy Duty Vented Table Top  Cabinet  RCHV  Series







Features:

 Heavy duty, 16-gauge steel,19" rack mount - table top cabinet

Ventilated on both sides & optimized per size to allow natural air convection.
       For solid side versions link to our
RCHS Series.

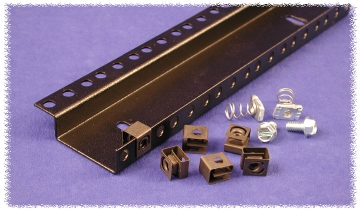

       Panel rails are infinitely adjustable (front to back), round hole punched for 10-32 clip-nuts to full EIA
         hole centers.
       Includes two pairs of rails (for rear support of heavier equipment or shelves), rubber feet, black ABS
         plastic handles, a starter pack of 10-32 clip nuts & matching 1421ABK black screws.
       Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included).
       Front & back lip is .585" (14 mm) so usable depth is reduced by 1.17" (30 mm).
       Recommended maximum weight (RCHV1902824 tested) - 800 lb (364 kg).
       Rugged textured powder paint finish.
       Stocked in Black & Light Gray (RAL7035).
       RoHS EU Directive 2002/95/EC compliant.
       Manufactured by an ISO 9001:2008 certified company, located in North America


Accessories

Door




17.5"  Deep models:

   (inch)

Part Number Color Reader
File
Overall Dimensions Usable mounting Dimensions Price Paypal
Height Width Depth Height Width Depth Rack
Unit
RCHV1900817BK1 Black PDF Download 10.75
273mm
21.00
533mm
17.50
445mm
8.75
222mm
19.00
483mm
16.25
413mm
5U $233.53

RCHV1900817LG1 Light Grey $233.53

RCHV1901017BK1 Black PDF Download 12.50
318mm
10.50
267mm
6U $270.07

RCHV1901017LG1 Light Grey $270.07

RCHV1901417BK1 Black PDF Download 16.00
406mm
14.00
356mm
8U $276.50

RCHV1901417LG1 Light Grey $276.50

RCHV1901717BK1 Black PDF Download 19.50
495mm
17.50
445mm
10U $287.10

RCHV1901717LG1 Light Grey $287.10

RCHV1902217BK1 Black PDF Download 24.75
629mm
22.75
578mm
13U $312.63

RCHV1902217LG1 Light Grey $312.63

RCHV1902817BK1 Black PDF Download 30.00
762mm
28.00
711mm
16U $367.46

RCHV1902817LG1 Light Grey $367.46



24.5"  Deep models:

   (inch)

Part Number Color Reader
File
Overall Dimensions Usable mounting Dimensions Price Paypal
Height Width Depth Height Width Depth Rack
Unit
RCHV1901024BK1 Black PDF Download 12.50
318mm
21.00
533mm
24.50
622mm
10.50
267mm
19.00
483mm
23.25
591mm
5U $343.81

RCHV1901024LG1 Light Grey $343.81

RCHV1901424BK1 Black PDF Download 16.00
406mm
14.00
356mm
6U $361.89

RCHV1901424LG1 Light Grey $361.89

RCHV1901724BK1 Black PDF Download 19.50
495mm
17.50
445mm
8U $373.97

RCHV1901724LG1 Light Grey $373.97

RCHV1902224BK1 Black PDF Download 24.75
629mm
22.75
578mm
10U $386.05

RCHV1902224LG1 Light Grey $386.05

RCHV1902824BK1 Black PDF Download 30.00
762mm
28.00
711mm
13U $402.09

RCHV1902824LG1 Light Grey $402.09



31.5"  Deep models:

   (inch)

Part Number Color Reader
File
Overall Dimensions Usable mounting Dimensions Price Paypal
Height Width Depth Height Width Depth Rack
Unit
RCHV1901031BK1 Black PDF Download 12.50
318mm
21.00
533mm
31.50
800mm
10.50
267mm
19.00
483mm
30.25
768mm
5U $422.74

RCHV1901031LG1 Light Grey $422.74

RCHV1901431BK1 Black PDF Download 16.00
406mm
14.00
356mm
6U $442.88

RCHV1901431BG1 Light Grey $442.88

RCHV1901731BK1 Black PDF Download 19.50
495mm
17.50
445mm
8U $465.01

RCHV1901731LG1 Light Grey $465.01

RCHV1902231BK1 Black PDF Download 24.75
629mm
22.75
578mm
10U $487.16

RCHV1902231LG1 Light Grey $487.16

RCHV1902831BK1 Black PDF Download 30.00
762mm
28.00
711mm
13U $509.31

RCHV1902831LG1 Light Grey $509.31





Part Number Part Number Number of Clip Nuts
and Screws Included
Shipping Weight
RCHV1900817BK1 RCHV1900817LG1 8 36 lb
RCHV1901017BK1 RCHV1901017LG1 16 40 lb
RCHV1901417BK1 RCHV1901417LG1 16 44 lb
RCHV1901717BK1 RCHV1901717LG1 16 46 lb
RCHV1902217BK1 RCHV1902217LG1 16 52 lb
RCHV1902817BK1 RCHV1902817LG1 16 58 lb
RCHV1901024BK1 RCHV1901024LG1 16 52 lb
RCHV1901424BK1 RCHV1901424LG1 16 56 lb
RCHV1901724BK1 RCHV1901724LG1 16 60 lb
RCHV1902224BK1 RCHV1902224LG1 16 68 lb
RCHV1902824BK1 RCHV1902824LG1 16 76 lb
RCHV1901031BK1 RCHV1901031LG1 16 64 lb
RCHV1901431BK1 RCHV1901431LG1 16 70 lb
RCHV1901731BK1 RCHV1901731LG1 16 72 lb
RCHV1902231BK1 RCHV1902231LG1 16 80 lb
RCHV1902831BK1 RCHV1902831LG1

16

92 lb







Email us if you have any questions.
