Key Features:

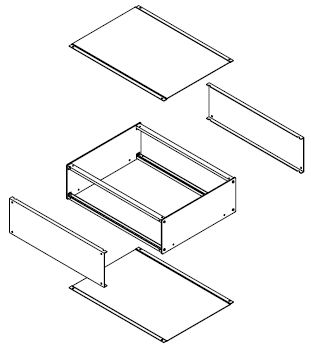

Shipped knocked down to avoid shipping damage
Easy assembly & disassembly
Uses all PEM nut construction, perfect for applications where repetitive assembly and disassembly are required.
Strong construction using:
0.125" thick side panels
0.064" thick front & rear panels
0.062" thick top and bottom panels
Light weight design - all aluminum
Can be used with or without rack mounting brackets (included)
Front & rear panel are interchangeable (one is smooth off white and the other, smooth black powder paint) - for replacement panels link here to our RMCP series
Enclosure is finished in rugged, textured, black powder paint
Includes top, bottom, side panels, feet, rack mount brackets and all hardware
Link below for more information on our chrome pull handles (not included with unit)
Easy access to inside, only 4 screws need to be removed from any of the 6 panels
Aluminum chassis panel is optional
|
Part Number
|
Reader File
|
Reader
Drawing File Size |
AutoCAD .dxf & .dwg Files
(zipped) |
.zip File Size
|
Panel Height
|
Width
(Inches) |
Depth
(Inches) |
Accepts Pull
Handle
|
Inside Clearance With Chassis Installed
(Inches) |
|
|
Inches
|
Units
|
|||||||||
|
RMCS19018BK1 |
 |
78K
|
 |
85K
|
1.75
|
1
|
17
|
8
|
No
|
0.81
|
|
RMCS190113BK1 |
|
78K
|
|
88K
|
1.75
|
1
|
17
|
13
|
No
|
0.81
|
|
RMCS19038BK1 |
|
79K
|
|
97K
|
3.5
|
2
|
17
|
8
|
1427P
|
2.56
|
|
RMCS190313BK1 |
|
79K
|
|
99K
|
3.5
|
2
|
17
|
13
|
1427P
|
2.56
|
|
RMCS190513BK1 |
|
79K
|
|
98K
|
5.25
|
3
|
17
|
13
|
1427N
|
4.31
|
|
RMCS190713BK1 |
|
81K
|
|
99K
|
7
|
4
|
17
|
13
|
1427M
|
6.06
|
|
RMCS190813BK1 |
|
80K
|
|
97K
|
8.75
|
5
|
17
|
13
|
1427M
|
7.81
|
|
RMCS191013BK1 |
|
81K
|
|
97K
|
10.5
|
6
|
17
|
13
|
1427L
|
9.56
|
|
RMCS191015BK1 |
|
79K
|
|
97K
|
10.5
|
6
|
17
|
15
|
1427L
|
9.56
|
19" Rack Mount (Ventilated Top & Bottom)
|
Part Number
|
Reader File
|
Reader
Drawing File Size |
AutoCAD .dxf & .dwg Files
(zipped) |
.zip File Size
|
Panel Height
|
Width
(Inches) |
Depth
(Inches) |
Accepts Pull
Handle
|
Inside Clearance With Chassis Installed
(Inches) |
|
|
Inches
|
Units
|
|||||||||
|
RMCV19018BK1 |
|
112K
|
|
110K
|
1.75
|
1
|
17
|
8
|
No
|
0.81
|
|
RMCV190113BK1 |
|
107K
|
|
117K
|
1.75
|
1
|
17
|
13
|
No
|
0.81
|
|
RMCV19038BK1 |
|
101K
|
|
119K
|
3.5
|
2
|
17
|
8
|
1427P
|
2.56
|
|
RMCV190313BK1 |
|
112K
|
|
131K
|
3.5
|
2
|
17
|
13
|
1427P
|
2.56
|
|
RMCV190513BK1 |
|
110K
|
|
126K
|
5.25
|
3
|
17
|
13
|
1427N
|
4.31
|
|
RMCV190713BK1 |
|
111K
|
|
127K
|
7
|
4
|
17
|
13
|
1427M
|
6.06
|
|
RMCV190813BK1 |
|
109K
|
|
125K
|
8.75
|
5
|
17
|
13
|
1427M
|
7.81
|
|
RMCV191013BK1 |
|
111K
|
|
128K
|
10.5
|
6
|
17
|
13
|
1427L
|
9.56
|
|
RMCV191015BK1 |
|
109K
|
|
127K
|
10.5
|
6
|
17
|
15
|
1427L
|
9.56
|
Half Width - Rack Mount (Solid Top & Bottom)
|
Part Number
|
Reader File
|
Reader
Drawing File Size |
AutoCAD .dxf & .dwg Files
(zipped) |
.zip File Size
|
Panel Height
|
Width
(Inches) |
Depth
(Inches) |
Accepts Pull
Handle
|
Inside Clearance With Chassis Installed
(Inches) |
|
|
Inches
|
Units
|
|||||||||
|
RMCS9018BK1 |
|
73K
|
|
71K
|
1.75
|
1
|
8.5
|
8
|
No
|
0.81
|
|
RMCS9038BK1 |
|
74K
|
|
77K
|
3.5
|
2
|
8.5
|
8
|
1427P
|
2.56
|
|
RMCS9058BK1 |
|
83K
|
|
77K
|
5.25
|
3
|
8.5
|
8
|
1427N
|
4.31
|
Half Width - Rack Mount (Ventilated Top & Bottom)
|
Part Number
|
Reader File
|
Reader
Drawing File Size |
AutoCAD .dxf & .dwg Files
(zipped) |
.zip File Size
|
Panel Height
|
Width
(Inches) |
Depth
(Inches) |
Accepts Pull
Handle
|
Inside Clearance With Chassis Installed
(Inches) |
|
|
Inches
|
Units
|
|||||||||
|
RMCV9018BK1 |
|
85K
|
|
85K
|
1.75
|
1
|
8.5
|
8
|
No
|
0.81
|
|
RMCV9038BK1 |
|
87K
|
|
95K
|
3.5
|
2
|
8.5
|
8
|
1427P
|
2.56
|
|
RMCV9058BK1 |
|
96K
|
|
92K
|
5.25
|
3
|
8.5
|
8
|
1427N
|
4.31
|
NOTES:
Top photo above (vented version) shown assembled with optional chassis & chrome handles installed. Front panel removed to show interior
Chassis Panel
|
Part Number
|
Reader File
|
Reader
Drawing File Size |
AutoCAD .dxf & .dwg Files
(zipped) |
.zip File Size
|
Use With Enclosure
|
|
|
Width (In.)
|
Depth (In.)
|
|||||
|
RMP908 |
|
27K
|
|
23K
|
8.5
|
8
|
|
RMP1908 |
|
28K
|
|
24K
|
17
|
8
|
|
RMP1913 |
|
28K
|
|
24K
|
17
|
13
|
|
RMP1915 |
|
27K
|
|
22K
|
17
|
15
|
Front
& Rear Replacement Panels
Front & rear panel are interchangeable
(one is smooth off white and the other, smooth black powder paint) - for
replacement panels link here to our RMCP series
06-14-2023
