Automotive Connectors

2-Pole Molded Connector Assemblies (Flat-Type)

764200
$4.99

“Flat-type” body. Wires are 16 ga., 44" (117.76cm) long.
Black, Red
1 piece/pk (1 piece= a pair of connectors)

2-Pole Flat-Type Molded Assemblies

764202
$4.63

“Flat-type” body. Wires are 10 ga., 12" (305mm) long.
Black, White
1 pc/pk

3-Pole Molded Connector Assembly (Flat-Type)

764228
$4.50

“Flat-type” body. Wires are 16 ga., 24" (610mm) long.
Green, White, Yellow
 1 pc/pk



4-Pole Tester (Flat-Type)

764002
$4.28

Tests 4-Pole Connections for conductivity & viability of circuits.
 1 pc/pk

4-Pole Flat-Type Molded Assemblies

764135
$5.99

“Flat-type” body. Wires are 18 ga., 24" (610mm) long.
Brown, Green, White, Yellow
 1 pc/pk

6-Pole Molded Connector Assembly (Square-Type)

764133
$6.55

“Square-type” body. Wires are 16 ga., 24" (610mm) long.
Blue, Brown, Green, Red, White, Yellow
1 pc/pk

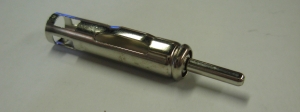

                 CAR RADIO ANTENNA PLUG

                                  DK - 2725

                                        $ 1.00

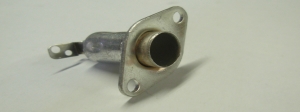

                   CAR RADIO ANTENNA JACK



                                        $1.00



Automotive Fuse Panels and Fuse Blocks


Blade-Type Fuse and Circuit Breaker Panels

Compact, lightweight, yet rugged for use in recreational vehicles, trucks, buses and marine applications. Accepts blade-type ‘ATO/ATC-Style’ Blade Fuses or automatic or manual circuit breakers. 30 amp maximum rating per branch circuit. Six to ten branch circuit terminals and stud common ground. No top cover is needed. Recessed fuse contacts. Molded of high grade thermoplastic. Rated to 105° C (221° F). Recessed mounting holes.


Fuse Blocks

For SFE-20 amp or 3 AG (AGC) type fuses, 1⁄4" (6.4 mm) dia. x 1 1⁄4" (31.8 mm) long. Screw terminals with binding head terminal screws. Phosphor bronze fuse clips, hard fiber insulator base.


Fuse Block with Common “Hot Feed” Connections

 Fuse clips with screw connections simplify installation and eliminate excess wiring. Solid brass bus bar for use with SFE-20 amp or 3 AGC type fuses. 4 1⁄4" x 2 1⁄4" x 5⁄8" (108.0 mm x 57.2 mm x 15.9 mm) 11⁄64" dia. (4.4 mm) mounting holes.

766043 6 positions $21.25

M-413 3 fuse block $14.88

762132 $16.10

766044 8 positions $24.75

M-641-01 6 fuse block $21.26

766045 10 positions $26.50
