INFRARED TEMPERATURE METERS






Accuracy : 1.5C / 1.5%
Resolution: 0.1C  or 0.1F
Distance spot ratio: 12:1
Emissivity: 0.95 (fixed)

C  / F unit selectable
Auto power off & Data Hold
Laser ON/OFF selectable
Backlight ON/OFF selectable
Use one standard 9 V battery



Part Number Measuring range Price Paypal
330 -32~350C
(-26~662F)
$37.00

550 -50~550C
(-58~1022F)
$39.00





MT300C

$70.80





Range: -20C˚- 300C˚ (-4˚F - 570˚F)
Resolution: 1˚C / 1˚F
Response time: 0.5 sec
Accuracy: 2% + 2˚C, 2% + 4˚F
Laser output: <1mW
Spectral response: 8-14m
Emissivity: preset at 0.95
Field of view: 10:1
Battery: 9Vx1, 6F22
Dimensions: 155x50x72mm
Weight: approx. 160g (incl. Battery)

Non-contact measuring
Built-in laser targeting with On/Off switch
3 digits LCD with yellow green backlit
MT300C   C˚ display
Auto data hold
Auto-power off (15 seconds)
Used for food, safety inspect, fire inspect, power vehicle and diesel engine plastic factory, etc.






MS6530

$82.80





Range: -20˚C - 537˚C (-4˚F - 999˚F)
Resolution:  0.1˚C / 0.1˚F
Response time:  0.5 sec
Accuracy: 2.5˚C (-20˚C - 50˚C)
Laser output: <1mW
Spectral response: 8-14m
Emissivity: 0.95
Field of view: 12:1
Battery: 9Vx1, 6F22
Dimensions: 162x56x190mm
Weight: approx. 267g

Dual 4 digits LCD display
Circular twelve dots laser targeting
˚C / ˚F
Data hold & LCD backlit
Max, Min, Man-Min and average value measurement
Auto-power off (10 seconds)
Low battery indication





MTP 1015

$59.00





Pocket size and light-weight
Temperature reading in ˚C and ˚F
Response time is less then 500ms
Optical resolution is 6:1
Emissivity 0.95
Included Accessories 2x AAA batteries



Function Range Best Accuracy Resolution
˚C - 30 to 270˚C 2.0% of reading 2.0˚C 1˚C
˚F - 22 to 518˚F 2.0% of reading 4.0˚C 1˚F
Spectral response 8 to 14 m
Field of view 6:1
Emissivity 0.95 fixed






MTP 1325

$89.00





Use selectable ˚C or ˚F
Single laser targeting
Automatic data hold auto power off
White backlight LCD display
Overrange indication
Max display
Included Accessories 1x 9V battery carrying pouch



Function Range Best Accuracy Resolution
˚C - 50 to 450˚C 1.0% of reading 1.0˚C 0.1˚C
˚F - 58 to 842˚F 1.0% of reading 1.8˚F 0.1˚F
Spectral response 8 to 14 m
Field of view 12:1
Emissivity 0.95 fixed






MTP 1329

$135.00





Dual laser sighting
Emissivity digitally adjustable from 0.10 to 1.0
White Backlight LCD display
˚C / ˚F selectable
Automatic data hold & auto power off
High and low alarms
Included Accessories 1x 9V battery carrying pouch



Function Range Best Accuracy Resolution
˚C - 50 to 550˚C 1.0% of reading 1.0˚C 0.1˚C
˚F - 58 to 1022˚F 1.0% of reading 1.8˚F 0.1˚F
Spectral response 8 to 14 m
Field of view 12:1
Emissivity Adj. 0.10 to 1.0







MTP 1328

$295.00





High 50 to 1distance target ratio measures smaller surface areas at greater distance
Widest temperature range
Built-in laser pointer, high and low alarms
Automatic data hold, max, min, DIF, AVG, record
Adjustable emissivity
Included Accessories 1x 9V battery carrying case



Function Range Best Accuracy
˚C - 50 to 1000˚C 1.5% of reading 2.0˚C
˚F - 58 to 1832˚F 1.5% of reading 3.6˚F
Field of view 50:1
Emissivity Adj. 0.10 to 1.0

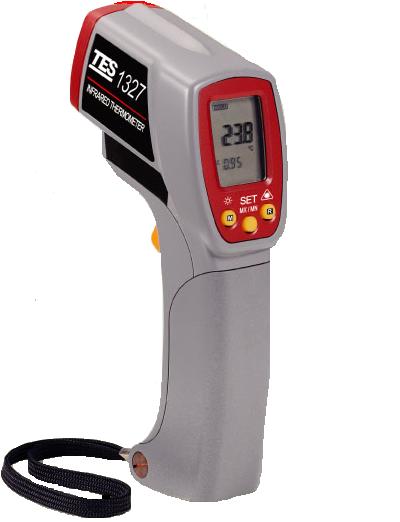

TES 1327K

$159.00




˚C / ˚F Selectable
Back-light LCD display
Laser targeting
Adjustable emissivity and type K thermocouple input
Audible and visible alarm
Data memory and read fonction
For HVAC, plant maintenance, food industiy etc
Included Accessories 1x 9V battery carrying case



Function Range Best Accuracy Max. Resolution
Type K Contact
˚C
- 150 to 1350˚C 0.2% 0.1˚C
Type K Contact
˚F
- 238 to 1999˚F 0.2% 0.2˚F
Non-Contact
˚C
- 35 to 500˚C 2.0% 0.1˚C
Non-Contact
˚F
- 31 to 932˚F 2.0% 0.2˚F
Spectral response 6 to 14 m
Field of view 8:1
Emissivity Adj. 0.17 to 1.00






Email us if you have any questions.
