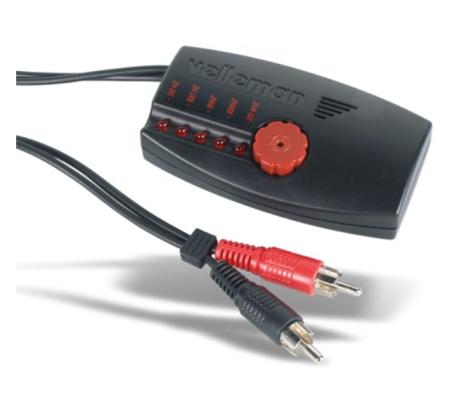

POCKET AUDIO GENERATOR-K8065

Price: $39.20

Great little gadget for service, repair, testing, education, etc...

Features

  • microprocessor technology

  • digital waveform generation

Specifications

  • sine wave: 50Hz, 100Hz, 1KHz, 10KHz, 20KHz

  • burst: 50Hz, 100Hz, 1KHz

  • burst mode: 20ms ON, 500ms OFF

  • noise: 32-bit digital pink noise

  • output level (10Kohm): 0 to 775mV (0dB)

  • outputs: 2 x RCA (cinch)

  • power supply: 2 x CR2016 or CR2025 battery (excl.)

  • dimensions: 3.4" x 2.0" x 1.0"

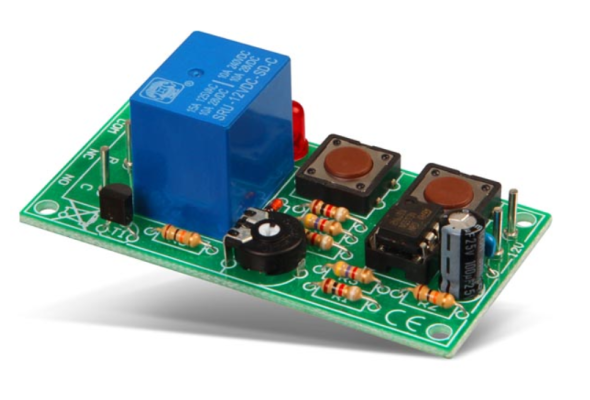

UNIVERSAL START/STOP TIMER-K2579



Miniature timer for all applications requiring a delay of up to 60 minutes. The control range may be adjusted.

Specifications

  • power supply: 12VDC / 55mA

  • relay: 3A / 220V switchable

  • time interval (without modifications): adjustable from 0 to 15 minutes

  • PCB dimensions: 1.5" x 2.7"

Price: $17.40

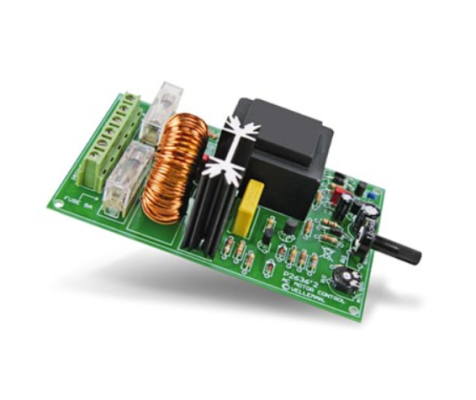

SPEED CONTROLLER-K2636



Designed to control AC motors with carbon brushes (drilling machine, vacuum cleaner, saw, …). High torque, even at low r.p.m. May also be used for low voltage loads (24V). Supply and load circuit electrically isolated from one another.

Specifications

  • voltage supply: 110-240V

  • load voltage: 24-240V AC / 5.5A max.

  • adjustable minimum r.p.m.

  • low interference level

  • range: 5-95%

  • PCB dimensions: 5.1" x 3.0"

Price: $47.00

TEMPERATURE SENSOR-K6001

This kit has been developed especially to be combined with the K6000RS or K6002 to build a temperature regulation and control system. The advantage of a separate sensor lies in the fact that the distance between the actual controller and the sensor is of no importance.

Specifications

  • sensor temperature range: -40°F to 302°F

  • pulse width modulation: 200µsec/°F

  • linearity from -10°C(14°F) to 50°C(122°F): better than 0.5%

  • tested up to 164' (distance between sensor PCB and controller)

  • supply voltage: 12V DC (± 2V) non-regulated

  • current: 20mA max.

  • PCB dimensions: 1.8" x 1.9"

Price: $29.80

2 MODULE DIGITS WITH SERIAL INTERFACE-K8063

Features

  • bright, red, jumbo-sized 7-segment displays (57mm).

  • complete with snap-in enclosure

  • multiple units can be linked in an easy way to create larger readouts for e.g. score-keeping, timing, counting, ...

  • easy platform-independent control via RS232 three-wire interface

  • up to 255 units can be separately addressed

  • tested with distances of up to 50m between PC and displays

Specifications

  • power supply: 9 to 12Vdc / 120mA per display

  • RS232 interface: 2400baud / 8 data bits / no parity / 1 stop bit

  • dimensions: 74 x 58.5 x 32mm (2.9" x 2.3" x 1.3")

Price: $52.35
