Digital Storage Oscilloscope

ADS1102CAL
100 Mhz

$499.00

Size: 339mm*110.5mm*148.5mm(L×W×H)
Weight: 2.4KG

40MHz
YB4340G
Price:$699.00
Save $70
Special: $629.00

60MHz
YB4360G
Price: $739.00
Save $74
Special: $665.00

100MHz
YB4368
Price: $879.00
Save $107
Special: $772.00

YB54100 WAS . $1198.00 SALE PRICE $ 1098.00	100 MHz Digital Storage Oscilloscope
	Power Supply: AC 110V/220V± 10%, 50Hz, 30W max. Dimensions & Weight: 350 x 145 x 288mm, ~5.0kgs Accessories: Probes and power cord

10MS/S PERSONAL POCKET SCOPE

PPS 10
Was: $ 189.00
Special: $179.00

World's most portable oscilloscope.
Joystick control for true hand-held operation. Set all the functions using only your thumb. With RS232 interface for PC connectivity. Measure up to 2MHz with a sensitivity down to 0.1mV.

Features

measurements: dBm, dBV, DC, rms ...
trigger mode: run, normal, once, roll, slope +/-
X and Y position signal shift
audio power calculation (rms and peak)
signal markers for Volt and Time
frequency readout (through markers)
recorder function (roll mode)
signal storage (2 memories)
full auto set up
LCD: 128 x 64 pixels / high-contrast
DVM read-out with x10 option
time base: 200ns to 1hour/div in 32 steps
5mV to 20V/div in 12 steps
0.1mV sensitivity
10Ms/s sampling rate
up to 2MHz analogue bandwidth
joystick operation

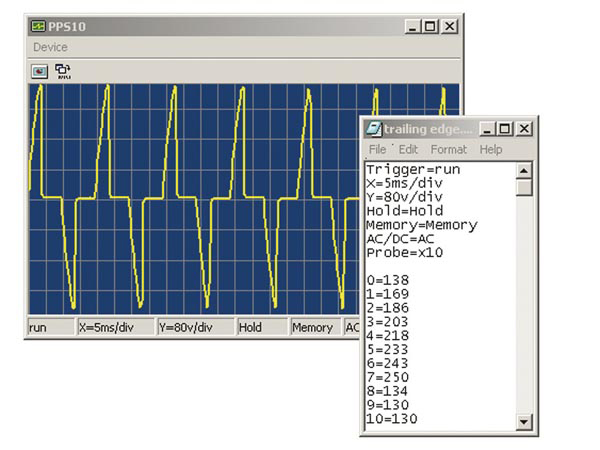

optical isolated RS232 output for PC

Specifications

power supply:
- 5 x 1.5V AAA battery or Nicd / NiMH (not incl.)
- includes battery charging circuit
- optional: adapter 9V / 300mA (PSU03RUSA)
dimensions: 155x100x45mm
weight: 395g

5MHZ HANDHELD DIGITAL OSC

HDS7020

$ 299.00

* A handheld oscilloscope ideal for hobby, service, automotive and development purpose
* High contrast FSTNLCD with white backlit
* Full auto set up for volt/div and time/div
* True RMS and dB measurement
* Auto measurement and cursor readout
* x1 and x10 probe calculation optiion
* Screen hold function
* Save and recall up to 100 waveforms
* Automatic zero reference for DC measurement
* Battery level indicator, auto power off

Technical Specifications
Analog Bandwidth: DC~5MHz, -3dB
Sampling rate: 20MSa/sec(real time)
Record Length: 256
Vertical deflection:10mV/div~10V/div
Vertical resolution: 8 bit
Input coupling: DC, AC and GND
Time base: 20s/div~0.5µs/div in 1,2,5steps
Trigger mode: Auto, Normal,Single
Auto measurement: Vpp, Vavg, Vrms, dBm
Cursor readout : ∆V, ∆T,1/∆T
ACV: 1mV~80V (true RMS), ±2.5% +10dgt
DCV: 1mV~180V , ±2.0% +10dgt
dB: -73dB~+40 dB (0 dB = 0.775V)
Storage: 100waveforms and parameters
Calibration output : approx. 3V@ 1KHz
Display : 128 x 128 pixels LCD with backlit, 71.7 x 71.7 mm
Power : 1.5V x 3, AA size alkaline, NiCd or NiMH battery
Dimensions: 105 x 220 x 35mm
Weight: 415g ( not incl batteries)
Accessories: probes, carrying case

USB-PC SCOPE + GENERATOR (2CH.)

PCSGU250

$ 239.00

Feature-packed PcLab2000-LT software for two channel oscilloscope, spectrum analyser, recorder, function generator and bode plotter. With the generator, you can create your own waveforms using the integrated signal wave editor. For automated measurements, it is even possible to generate wave sequences, using file or computer RS232 input.

function generator:
- crystal-based stability
- standard waveforms: sine, square and triangle
- predefined library waveforms included: sine(x)/x, DCV, sweep, ...
oscilloscope:
- auto set-up function and X10 option
- pre-trigger function
- readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency…
transient recorder:
- automatic storage of data
- automatic recording for more than 1 year
- record and display of screens
bode Plotter:
- automated sync between oscilloscope and generator
- logatithmic scale option
- Volt or dB display scale
- phase plot option
spectrum analyser:
- linear or logarithmic timescale
- operating principle: FFT (Fast Fourier Transform)
- FFT input channel: CH1 or CH2
- zoom function
in the box:
- getting started manual
- USB PC Scope+generator unit
- USB cable
- software on CD
- 1 x 60MHz scope probe
- BNC adapter, BNC male to RCA female (CBNC15)

general:
- markers for: amplitude/voltage and frequency/time
- input coupling: DC, AC and GND
- Supply from USB port (500mA)
- dimensions: 8.2 x 2.2 x 7"
function generator:
- amplitude range: 100mVpp to 10Vpp @ 1KHz// 600ohm load / 0V offset
- offset: from 0 to -5V or +5V max. (resolution 0.4% of full scale)
- vertical resolution: 8 bits
- square wave rise/fall time: 0.2µs
- sample rate: 12.5MHz
- typical sine wave distortion (THD): < 1%
- output impedance: 50ohm
- frequency range: from 0.005Hz to 500kHz
oscilloscope:
- bandwidth: two channels DC to 12 MHz ±3dB
- input impedance: 1 Mohm / 30pF
- maximum input voltage: 30V (AC + DC)
- time base: 0.1µs to 500ms per division
- input range: 10mV to 3V/division
- input sensitivity: 0.3mV display resolution
- record length: 4K samples / channel
- sampling frequency: 250Hz to 25MHz
transient recorder:
- timescale: 20ms/Div to 2000s/Div
- max record time: 9.4hour/screen
- max. number of samples: 100/s
- min. number of samples: 1 sample/20s
bode Plotter:
- voltage range: 10mV, 30mV, 0.1V, 0.3V, 1V, 3V
- frequency range: 1kHz , 10kHz, 100kHz, 500kHz
- Frequncy start: 10Hz, 100Hz, 1kHz, 10kHz
spectrum analyser:
- frequency range: 0 .. 120Hz to 12MHz
- FFT resolution: 2048 lines
minimum system requirements:
- IBM compatible PC
- Windows™ 2000, XP, Vista *
- SVGA display card (min.1024 x 768)
- mouse
- free USB port 1.1 or 2.0
- CD Rom player

GBW-43010 $186.00
$186.00CAD	Analog GBW-ST16B - 10 MHz Technical Specifications: Vertical System: Bandwidth ( -3dB ): DC 0 - 10MHz , AC 10Hz 10MHz Deflection: 10mV / div ~ 10v / div Rise Time: 35ns Impedance: 1M, 30pF ( Direct ) Max Input Voltage: 400v ( DC + AC Peak ). Horizontal System: Sweep Rate: 0.1S - 0.1 uS /div Variable Ratio: >2.5 : 1 Trigger System: Trigger Source: INT, EXT, Line Trigger Mode: normal, auto, TV, trig lock Trigger Sensitivity: Int 1.5V /div, Ext 0.3v X-Y Mode: Deflection: 0.2/div ~ 0.5v /div Bandwidth ( -3dB ): DC / 10Hz - 1MHz Calibrate Signal: Rectangular wave, 0.5v pp, 1KHz. Weight: Approx 4.8Kg.
$ 456.30 CDN	Analog - Digital Cursor YB4325 - 20 MHz Technical Specifications: not yet available
Special: $290.00CDN	Analog -YB 4328 - 20MHz Technical Specifications: Vertical System: Bandwidth ( -3dB ): DC/ 10Hz - 20MHz, Mode: Y1, Y2, ALT, CHOP, ADD, X-Y Deflection: 5mV / div ~ 10V / div, 11 step Mag Ratio: x5 Rise Time: 18ns ( 70ns after mag. ) Impedance: 1M, 25 pF Max Voltage: 400v ( DC + AC Peak ) Horizontal System: Sweep Mode: Auto, Trig, Trig, Trig Lock, Single Time Sweep Rate: 0.2S - 0.1 uS / div Mag Ratio: x5 Trigger System: Trigger Source: Y1, Y2, Alt, Line, Ext Trigger Sensitivity: 20Hz - 40 MHz 2div, Ext 0.2v p-p Sync Range: 50Hz - 20Mhz Impedance ( Ext ) 1 M, 20pF X-Y Mode: Deflection: 5mV/div ~ 10V/div Bandwidth ( -3dB ): DC / 10Hz - 1MHz Calibrate Signal: Rectangular wave, 0.5v pp, 1KHz. Weight: Approx 7.2 Kg ok
$485.55CDN	Analog YB 4340 - 40MHz Technical Specifications: Vertical System: Bandwidth ( -3dB ): DC/ 10Hz - 40MHz, Mode: CH1, CH2, Dual, ADD Deflection: 5mV / div ~ 5V / div, 10 step Mag Ratio: x5 Rise Time: 8.8ns Impedance: 1M, 25 pF Max Voltage: 300v ( DC + AC Peak ) Horizontal System: Sweep Mode: x1, x5, x5 Alter Sweep Rate: 0.2S - 0.1 uS / div Mag Ratio: x5 Trigger System: Mode: auto, normal, TV-V, TV-H Trigger Source: Int, Ch2, Line, Ext Trigger Sensitivity: 10Hz - 40 MHz 2div, Ext 0.2v p-p TV Sync: Int 1 div, Ext 1V p-p X-Y Mode: Deflection: 5mV/div ~ 5V/div Bandwidth ( -3dB ): DC / 10Hz - 500 KHz Calibrate Signal: Rectangular wave, 0.5v pp, 1KHz. Weight: Approx 4.8Kg. ok
$544.05CDN	Analog YB 4360 - 60 MHz Technical Specifications: not yet available
$889.20CDN	Analog - Digital Cursor YB 4365 - 100 MHz Technical Specifications: not yet available
$1040.13CDN	Digital Storage Oscilloscope YB-54060 - 60 MHz Technical Specifications: Bandwidth: DC ~ 60 MHz Sampling Rate: 10GHz Channel: CH1, CH2 Storage Memory: 16k / ch Vertical Sensitivity: 2mV / div ~ 5V / div Vertical Resolution: 8 bit Input Impedance: 1M, 13pF Input Coupling: DC, AC, GND Time Base: 2.5ns - 5S / div Trig Source: CH1, CH2, Ext, Ext /5, Line Trig Mode: Auto, Normal, Single Time Trig Type: Edge, TV, 50% Horizontal Accuracy: 0.01% Horizontal Resolution: 100ps Max Voltage: 400v ( DC + AC Peak ) Auto Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vavg,Vrms, Freq, Risetime, Falltime, Period, +Width, -Width, etc. Cursor Measurement: Manual Trace, Auto Storage Function: 5 waves, 5 setups X-Y Mode: 60 MHz Bandwidth, Phase Error, 3 deg. Display Mode: Colour VGA, 320x240 Weight: Approx 4.5 Kg Optional Interface Module for GPIB, RS232, and FFT also available. ok
TWO-CHANNEL USB PC OSCILLOSCOPE PCSU1000 $ 450.00 The PCSU1000 digital storage oscilloscope uses the power of your PC to visualize electrical signals. Its high sensitive display resolution, down to 0.15mV, combined with a high bandwidth and a sampling frequency of up to 1GHz are giving this unit all the power you need. The USB connection makes this unit a snap to set-up, no external power required! In the field measurements using a lap-top computer have never been this easy. This scope comes in a stylish vertical space saving design. Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application. Features oscilloscope: timebase: 20ns to 100ms per division trigger source: CH1, CH2, EXT or free run trigger edge: rising or falling trigger level: full-screen adjustable step interpolation: linear or smoothed markers for: voltage and frequency input range: 5mV to 2V/division input sensitivity: 0.15mV display resolution auto set-up function and X10 option pre-trigger function readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency? recording length: 4K samples / channel real time sampling frequency: 1.25kHz to 50MHz sampling frequency for Repetitive signals: 1GHz spectrum analyzer: frequency range: 0...1.2kHz to 25MHz linear or logarithmic time scale operating principle: FFT (Fast Fourier Transform) FFT resolution: 2048 lines FFT input channel: CH1 or CH2 zoom function markers for amplitude and frequency transient recorder: time scale: 20ms/div to 2000s/div max. recording time: 9.4hours/screen automatic data storage automatic recording for more than 1 year max. number of samples: 100/s min. number of samples: 1 sample / 20s markers for time and amplitude recording and display of screensrecording and display of screens Click here for more ...
DIGITAL STORAGE SCOPES FOR PC- 32MS/s PCS100 $ 227.00 The PCS100 is a digital storage oscilloscope, using a computer and its monitor to display waveforms. All standard oscilloscope functions are available in the Windows program supplied. Its operation is just like a normal oscilloscope. Connection is through the computer's parallel port, the scope is completely optically isolated from the computer port. Features comes with adapter: no general: 1 channel input impedance: 1Mohm / 30pF frequency response: 0Hz to 12MHz (± 3dB) step markers for voltage, time and frequency vertical resolution: 8 bit auto setup function optically isolated from computer record and display of screens & data supply voltage: 9 - 10V DC / 500mA dimensions: 9" x 6.5" x 1.8" weight: 14oz minimum system requirements: IBM compatible PC Windows 98, ME, (Win2000 or NT possible), XP SVGA display card (min. 800x600) mouse free printer port LPT1, LPT2 or LPT3 CD Rom player comes with: 1 insulated measurement probe x1 / x10 Click here for more ...
