Solarpanel

Photovoltaic Solar Panel

Photovoltaic (PV) panels convert sunlight directly into electricity. PV technology is the ultimate source of electric power for
the 21st century, utilizing a clean renewable source. The system consists of a PV array (solar panel),
generating DC electricity, an inverter which converts the DC to standard AC electricity,
compatible with the electrical grid and capable of powering electrical devices.

How does a solar cell work?
A solar cell is a solid state device that converts sunlight directly to electricity.
The cells can be wired in series or parallel to achieve various electrical voltages and currents.
A typical single crystalline cell produces about 0.5 volts, and about 3 to 5 amperes.

What is a solar module?
A solar module is made up solar cells laminated to glass and usually framed with aluminum.
Interconnect wires or junction boxes allow one to connect the (+) or (-) of the module to adjacent
modules or an electrical load. Solar modules produce direct current electricity.

What is a solar panel?
Photovoltaic panels include one or more PV modules assembled
as a pre-wired, field-installable unit.

What is a solar array?
A photovoltaic array is the complete power-generating unit,
consisting of any number of solar modules and panels.

We have several panels available for sale through our website. They vary in size and power.

Solar Cells

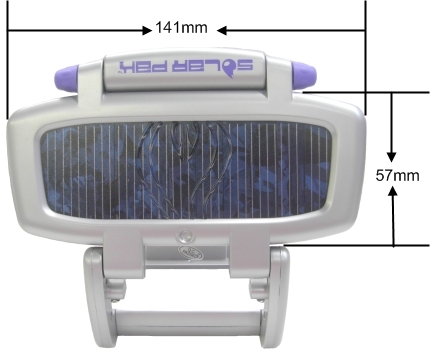

Solar Pak-GEGBASP

Features:

-Powered by natural sunlight

-Articulating light bar

-Built-in recharging solar array

$ 4.90

SSP1

$4.90 (Sold out)

This solar cell is useful for most electronic projects which involve a low current and can be used outdoors. Great for the kids or for small experiments.

Output is 4V in average sunlight conditions. Amperage varies.

Dimensions: approximately 3.5in x 2.5in x 0.3in

SSP2

2.25 Volt 80 MA

Part Number	Price	Paypal
SSP2-1	$ 2.90
SSP2-10 (package of 10)	$ 20.00

GW - 5D

11" Long 10.5" High

Module Type:
Maximum Power	(Pmax)	5.0W
Open Circuit Voltage	(Voc)	21.5V
Short Circuit Current	(Isc)	0.32A
Maximum Power Voltage	(Vmp)	17.5V
Maximum Power Current	(Imp)	0.29A
