CLAMP-ON MULTI-METERS

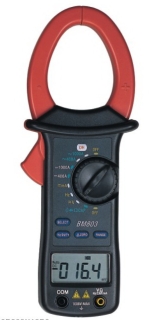

                             GW 803


                                      was  $99.00
 Spring Special
$ 59.00





               1000 A AC/DC AUTO-RANGING
                 DIGITAL CLAMPMETER

   .3 3/4 digits LCD display, max, reading 3999
   . Versatility of use with AC/DC voltage&current,           resistance, capacitance, frequency (up to 20 MHz) and pulse duty measurement
    . Relative measurement
   . Data hold, auto-power off
     .  Safety as per IEC 1010-1 CAT. l l 1000V

         Technical specifications
         DCV: 400m/40/400/1000V,±0.8%
         ACV: 400m/4/40/400/700V,±1.2%
         DCA: 40m/100mA,±1.5%(optional)
                   400/1000A,±2.0%
         ACA: 40m/100mA,±1.0%(optional)
                   400/1000A,±1.9%
         OHM: 400/4k/40k/400k/4M/40MΩ,±0.5%
         Pulse Duty: 0.1% ~ 99.9%
         Audible continuity & diode test
         Clamp size: 54mm (max)
         Battery: 1.5V x 2, AA size
         Dimensions& weight: 248 x 88 x 45 mm, 360g
         Accessories: carrying bag


GW 2000B


was $99.00
 Spring Special
$ 79.00



BM2000B DIGITAL PANEL CALIBRATE CLAMP MULTIMETER
3 1/2 Digit, MAX Display: 1999, PH, DH, MAX, Back Light
Over Load Protection
MAX expand of the pincers: 55mm
DCV: 1000V+/-0. 5%+/-2,
ACV: 700V+/-1%+/-5
DCA: 200/2000A+/-1. 9%+/-5
ACA: 200/2000A+/-1. 9%+/-5
RESISTANCE: 2K©+/-0. 8%+/-2
CONTINUITY BUZZER
DIODE
DCA AUTO ZERO
POWER SUPPLY: 6F22 or NEDA 9V x 1
SIZE: 270x100x44mm
WEIGHT: About 450g(Include battery)


was $99.00
 Spring Special
$ 59.00




was $125.00
Spring Special
$ 99.00

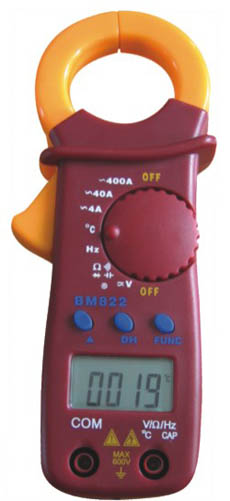

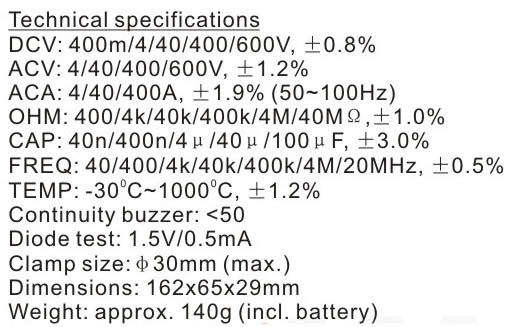

GW822

 $47.00





 -3 3/4 DIGITS LCD display, max. reading 3999
-SMT application
-Rotary switch for on hand operation
-Capacitance, frequency and temperature measurement
-Data hold, auto-power off
-Over load protection

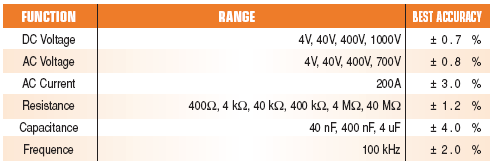

MTP MS-2600
$76.00
  • Open jaw digital electrical tester

  • Duty cycle test fuction

  • Teat leads can be inserted on groove of back of tester
  • Included accessories: 1 x 9V battery, test leads, carrying case
    •

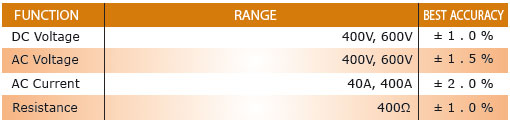

TES-3091-N
$89.00
  • 3 3/4 digits LCD display, 4000 counts

  • NCV function (Non-contact voltage detection)

  • Data hold function

  • Auto power off (15 minutes)

  • Auto ranging
  • Included accessories: 2 x AA battery, test leads TLD-35, carrying case 3090-CC



TES-3079K
$199.00
  • Check current draw in motor and compressor

  • Use MAX/MIN recording in the temperature mode

  • Test run/start capacitors

  • Measure flame safeguard device current draw

  • Insulation test up to 100 MOhms

  • Analyze temperature and voltage or current data with the aid of the time stamp
  • Included accessories: 1 x 9V battery, test leads, alligator clip, carrying case

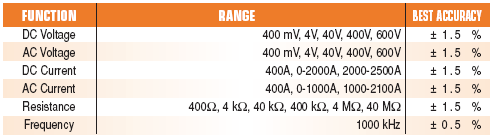

PROVA 2000A
$450.00
  • DC 2500A, AC 2100A

  • Ш55mm, Bus Bar 65mm x 24mm

  • True RMS

  • V, , , , Hz

  • Autorange

  • Diode Test

  • Integrated Current Probe (Analog Output for data recording or wave form observation)

  • Continuity

  • 3-3/4 Digits (4000 Counts)

  • Fast Bar-Graph

  • Max/Min/Hold

  • Relative Measurement
IEC 1010
CAT. III 600V POLLUTION 2
General Specification

Jaw Opening: Cable Ш55mm Bus Bar 65mm (D) x 24mm (W)
Power Source: One 006p 9V or IEC 6F22 or NEDA 1604 Battery
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: Less than 80% RH
Dimensions: 71mm(L) x 112mm(W) x 46mm(H) 10.7”(L) x 4.4”(W) x 1.8”(H)
Weight: 647g/22.8 oz (Battery included)

Electrical Specification (23°C ± 5°C) DC Current (Autorange & Manual)
Range: 400A/2500A
Resolution: 0.1A/1A
Accuracy: ± 01.5% rdg ± 3 dgts
Overload Protection: 3000A

AC Current (Autorange & Manual, True RMS)
Range: 400A/2100A(0-1000)/2100A(1000-2100)
Resolution: 0.1A/1A
Accuracy: ± 1.5% rdg ± 5 dgts/± 2% rdg ± 5 dgts/ ± 2.5% rdg ± 5 dgts (50/60Hz) ± 2% rdg ± 5 dgts/± 2.5% rdg ± 5 dgts/ ± 3% rdg ± 5 dgts (40-400Hz)
Overload Protection: 3000A

Current Analog Output
(Overload Protection 600V)
Range: 400A/2500A
Output: 1mV/A
Accuracy: ± 2.5% rdg ± 0.5A/± 2.5% rdg ± 5A
Overload Protection: 600VAC

DC Voltage (Autorange & Manual, Overload Protection 800VAC for all Range)
Range: 400mV/4V/40V/400V/600V
Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
Accuracy: ± 1% rdg ± 3 dgts
Input Impedance: 10M/5M		 AC Voltage (Autorange & Manual,
True RMS Input Impedance 5Mћ for all Range)
Range: 4V/40V/400V/600V
Resolution: 0.001V/0.01V/0.1V/1V
Accuracy: ± 1.5% rdg ± 5 dgts
Overload Protection: 800VAC

Resistance () (Autorange & manual,
Open Circuit Voltage 0.5V)
Range: 400/4K/40K/400K/4M/40M
Resolution: 0.1/1/10/100/1K/10K
Accuracy: ± 1.5% rdg ± 3 dgts
Overload Protection: 600VAC

Audible Continuity
Range: 400
Continuity Beeper: 40 (approx.)
Open Circuit Voltage: 0.5V
Overload Protection: 600VAC

Diode Test
Range: 3V
Resolution: 0.001V
Accuracy: ± 2.5% rdg ± 5 dgts
Overload Protection: 600VAC

Hz
Range: 100-1000KHz
Resolution: 0.01-100Hz
Accuracy: ± 0.5% rdg ± 2 dgts
Sensitivity: 10mV/0.1V/1V
Overload Protection: AC 600V

Accessories
Carrying Case, Instruction Manual,
Safety Test Leads, Battery

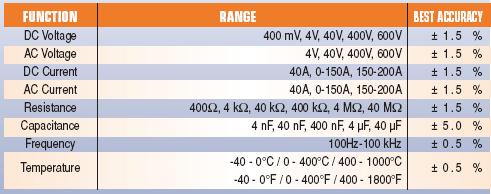

PROVA CM-02
$295.00



  • DC/AC 0.01A Resolution

  • 23mm Jaw Diameter

  • Temperature and Capacitance

  • Autorange V Hz °C °F –| |–

  • AC/DC 0.01A-200A

  • One Touch Zero

  • 3-3/4 Digits (4000 Counts)

  • Max/Min/Hold/Relative

IEC 1010 CAT. II 600V
General Specification:

Conductor Size: 23mm Diameter
Battery: 1.5V AA UM3 battery x 2
Display: 3-3/4 Digits (4000 Counts)
Range Selection: Auto and Manual
Power Consumption: 10mA (Approx.)
Sampling Time: 2 Times/Sec. (Digital), 20 Times/Sec. (Bar-Graph)
Operating Temperature: 0 to 50°C (32 to 122°F)
Operating Humidity: Less than 85% RH
Dimension: 183mm(L) x 63.6mm(W) x 35.6mm(H) 7.2”(L) x 2.5”(W) x 1.4”(H)
Weight: 190g (Batteries included)

Electrical Specification (23°C ± 5°C)
DC Current:
Range: 40A/0-150A/150-200A
Resolution: 10mA/0.1A
Accuracy: ± 1.5% ± 2 dgts/± 1.5% ± 3 dgts
Overload Protection: 400A

AC Current:
Range: 40A/0-150A/150-200A
Resolution: 10mA/0.1A
Accuracy: ± 1.5% ± 3 dgts/
± 2.0% ± 3 dgts (50/60Hz)
± 2.5% ± 3 dgts/± 3.0% ± 3 dgts (40-1KHz)
Overload Protection: 400A

DC Voltage (Autorange & Manual, Overload Protection 800VAC):
Range: 400mV/4V/40V/400V/600V
Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
Accuracy: ± 1.5% ± 3 dgts
Overload Protection: 10M/5M

AC Voltage (Autorange & Manual,
Input Impedance 5M)
Range: 4V/40V/400V/600V
Resolution: 0.001V/0.01V/0.1V/1V
Accuracy: ± 1.5% ± 5 dgts
Overload Protection: 800VAC		 Frequency (Hz, Autorange & Sensitivity selected by RANGE button):
Range: 100~1000KHz
Resolution: 0.01~100Hz
Accuracy: ± 0.5% ± 2 dgts
Sensitivity: 10mV/0.1V/1V
Overload Protection: 600VAC

Resistance () & Audible Continuity
(Open Circuit Voltage 0.5V):
Range: 40~400
Resolution: 0.1
Accuracy: ± 1.0% ± 5 dgts
Beeper: 40 (approx.)
Overload Protection: 600VAC

Resistance () (Autorange & Manual,
Open Circuit Voltage 0.5V):
Range: 400/4K/40K/400K/4M/40M
Resolution: 0.1/1/10/100/1K/10K
Accuracy: ± 1.5% ± 3 dgts
Overload Protection: 600VAC

Capacitance (Autorange & Manual):
Range: 4nF/40nF/400nF/4uF/40uF
Resolution: 1pF/10pF/0.1nF/1nF/10nF
Accuracy: ± 5.0% ± 0.2nF/± 3.0% ± 0.2nF/ ± 3.0% ± 0.002uF
Overload Protection: 600VAC

TEMP K TYPE °C (Autorange & Manual, °F optional):
Range: -40~0°C/0~400°C/400~1000°C
Resolution: 0.1°C/1°C
Accuracy: ± 2.0% ± 2°C/± 0.5% ± 1°C/
Sensitivity: ± 0.8% ± 1°C
Overload Protection: 600VAC/600V

Accessories:
Adaptor (for K-type Thermocouple and Capacitor) x 1, K-type Thermocouple x 1, Carrying Bag x 1,
Users manual x 1, 1.5V Battery x 2


PROVA CM-07
$299.00
  • High Resolution
    DC 10mA, AC 1mA

  • True RMS

  • Non-contact Current Frequency Measurement

  • 23mm Large Jaw Diameter

  • One Touch Zero for DCA adjustment

  • Large 3-3/4 Digits LCD (4000 counts)

  • Fast Analog Bar-Graph Display

  • Max/Min, Data Hold
  • Accessories: Carrying Case, Instruction Manual,
    Safety Test Leads, Battery


PROVA 11
$435.00
  • Large 4000 counts LCD display with bar graph

  • Very accurate clamp meter AC/DC

  • Super high resolution DC 1 mA, AC 0.1 mA

  • True RMS
  • Conductor Diameter 23mm

  • Large 3-3/4 digits LCD (4000 counts)

  • Additional ADP range for 400mV input

  • Fast Analog Bar-Graph Display

  • 600Vrms overload Protection
    for Ohm Measurement

  • Data Hold and Max/Min Hold

  • Auto-power off

Click image to enlarge - AC/DC Current Probe
PROVA CM-05
$165.00



  • Accurate and High Resolution

  • 23mm Conductor Diameter

  • One Touch Zero

  • Separated Power-on and Lower Battery LEDs

    Power Source:
    2 x 1.5V AA UM3 Batteries
    Current Consumption: 8mA
    Operating Condition:
    -10°C to 50°C at 85% max. RH

    Accessories:


    • Instruction manual

    • Test lead

    • Batteries AA x 2

Click image to enlarge - AC/DC Current mA Probe
PROVE 15
$275.00
  • High Resolution DC 1mA, AC 0.1mA

  • Connect to an Oscilloscope to observe Current Waveform

  • Connect to Chart Recorder/datalogger/DMM to record Current data

  • Conductor Diameter 23mm

  • One Touch Zero

Accessories:


  • Instruction manual

  • Test lead

  • Batteries AA x 2

Click image to enlarge - AC/DC Clamp
TES ADC 1000
$145.00

  • Ideal for large size cable 500mm


  • One touch zero adjustment


  • Can connect to an oscilloscope for current waveform

Included accessories: 1 x 9V battery, carrying case

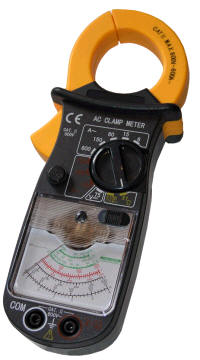

MTP 500
$76.00



  • Overload protection: protected by 0.5A /250V(5.2x21) fuse and diode ranges.

  • Frequency: 50HZ / 60HZ

  • Core conductor diameter: Approx 34 mm max.

  • Dimensions: 214 mm (H) x85 mm (W) x43 mm (D)

  • Weight: approx 350g (battery included)

  • Power source: one 1.5V UM-3 ‘AA’ battery or equivalent.

  • Accessories (included): Test leads, carrying case, Instruction manual, battery, two 0.5A /250V fuse, temperature test probe

Ranges
AC current: 6/15/60/150/600A
Voltage: 150/300/750V
DC voltage: 75V
Resistance: 0-2kohm (mid-scale 50ohm) R X 1, 0-200Kohm (mid-scale 5Kohm)R X 1OO
Temperature: -20°C~+150°C(operational Temperature probe)

Accuracy
AC current: ±3% of full scale (6/15/150A range) ±5% of full scale (600A range)
Voltage: ±3% of full scale
DC Voltage: ±3% of full scale
Resistance: ±3% of full scale length
Temperature: within ±3% of arc

Click image to enlarge - Flexible AC Current Probe

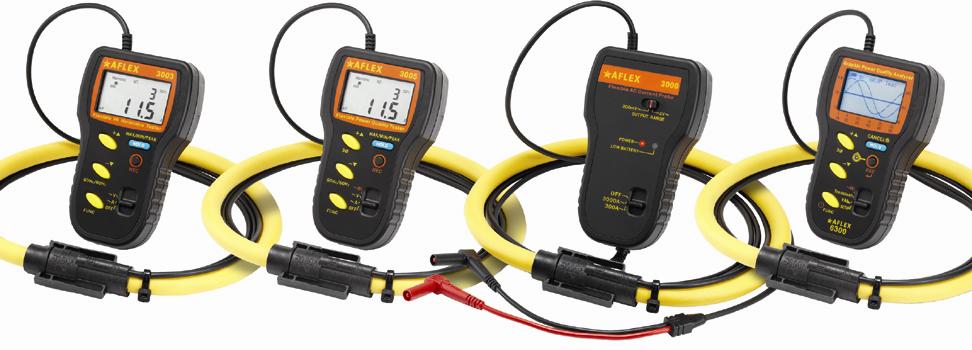

PROVA AFLEX 3000
$259.00



  • Two current ranges: 300A & 3000A AC

  • Two output sensitivity: 300mV & 1V versatile for measuring instruments

  • Input protection up to 600V

  • Connector diameter: 23mm

  • Cable diameter: 14mm

  • Cable length from probe to box: 170mm

  • Cable length from box to ouput: 170mm

  • Probe length, 24in/610mm

  • Weight: 430g

  • Size (LxWxD): 130 x 80 x 43mm

  • Suitable for any electrical system

  • Wide bandwidth, low phase shift

  • Low battery indication

Included accessories: 2 x AA batteries

AFLEX 3003
$395.00

 AFLEX 3005
$535.00

 AFLEX 6300
$950.00
AFLEX 3003 Flexible VA Harmonics Tester
AFLEX 3005 Flexible Power Quality Tester

Power Analysis (3005)
W, KW, H.P.
VA, KVA, VAR, KVAR
PF, phase angle
Energy (WH, KWH)
Dual display (W+PF, VA+KVAR)
Balanced 3 phase power quality
Balanced 3 phase sequence

 		 Harmonics Analysis (3003, 3005)
True RMS (V & A)
3000A
Harmonic analysis (V & A) to the 50th order in % and magnitude
Non interruptes harmonic analysis
Analysis of %THD-F and CF
Fast peak function (33us & 39us)
Programmable PT (1 to 250) ratios
Auto power off

AFLEX 6300
Graphic power quality Analyzer
Analysis for single phase and balanced 3 phase systems
True RMS value (V & A)
Active power (KW), apparent (KVA) and reactive power (KVAR)
Power factor (Pf), Phase angle
Energy (WH, KWH, KVARH, PFH)

Click image to enlarge - AC/DC Clamp Meter
TES 3092
$159.00



  • Compact Size.

  • AC/DC Current Measurement (AC 700A / DC 800A).

  • 600 V AC & 200V DC, Ohm/Continuity Beeper.

  • One Touch DCA Zero

DC Voltage:
Range 200V, Resolution 0.1V, Accuracy ±(1%rdg + 1dgts), Imput Impedance 1M, Overload Protection: 600Vrms

AC Voltage:
Range 600V, Resolution 1V, Accuracy ±(1.5%rdg + 4dgts), Frequency Range 50 ~ 400Hz, Imput Impedance 1M, Overload Protection: 600Vrms

DC Current:
Range 200A, Resolution 0.1A, Accuracy ±(1.5%rdg + 2dgts), Overload Protection 600Arms
Range 800A, Resolution 1A, Accuracy ±(1.5%rdg + 2dgts), Overload Protection 600Arms

AC Current:
Range 200A, Resolution 0.1A, Accuracy ±(2%rdg + 4dgts), Frequency Range 50/60Hz, Overload Protection 600Arms
Range 700A, Resolution 1A, Accuracy ±(2%rdg + 4dgts), Frequency Range 50/60Hz, Overload Protection 600Arms

Ohms (Resistance):
Range 2K, Resolution 1, Accuracy ±(1%rdg + 1dgts), Overload Protection 600Vrms

Continuity Beeper:
Range , Sound Level 30, Max Open Circuit Voltage 3V, Overload protection 660Vrms

TES-3082 AC/DC Clamp Meter

PRICE: $150



Features:

  • True RMS Reading

  • 4000 Count Reading

  • AC/DC 600A

  • DCA One-touch-Zero

  • Auto Power Off

IEC 1010
CAT III POLLUTION 2 600V
A: General Measurement
Voltage (AC/DC)
Range: DC - 600V
AC - 400V/600V
Accuracy: DC - 0.75% rdg + 2 dgts
AC - 1.2% rdg + 5 dgts
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Ohms (Resistance)
Range: 4K
Accuracy: 1% rdg + 5 dgts
Resolution: 0.001K
Overload Protection: 660Vrms
Max Open Circuit Voltage: 0.5VDC
Current (DC/AC) DC for TES-3080, 3082
Range: 400/600A
Accuracy: 2% rdg + 5 dgts
Resolution: 0.1/1A
Overload Protection: 800A
Frequency (Hz)
Range: 4KHz/20KHz
Accuracy: 0.5% rdg + 5 dgts
Resolution: 0.1Hz/1Hz
Max Input Sensitivity: 5A/1V
Overload Protection: 800A/750V
Audible Continuity
Continuity beeper below 40
Max Open Circuit Voltage: 3.2V
Overload Protection: 660Vrms
Diode Test
Resolution: 0.001V
Accuracy: 1% rdg + 2 dgts
Overload Protection: 660Vrms		 B: Peak Hold Measurement
Current (AC)
Range: 400/600A
Accuracy: 2% rdg + 10 dgts
Resolution: 0.1A/1A
Overload Protection: 800A
Voltage (AC)
Range: 400/600V
Accuracy: 1.5% rdg + 10 dgts
Resolution: 0.1V/1V
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Capacitance (µF) for TES-3073
Range: 0~2000µF
Resolution: 1µF
Accuracy: (3% + 5)
Test Frequemty: 2Hz
Temperature (K Type) for TES-3073
Range: -50°C~1000°C / -50°F~2000°F
Resolution: 1°C / 1°F
Accuracy: ± (2% + 2°C)
± (3% + 4°F)
Accessories
Carrying Case, Instruction Manual,
Safety Test Leads, Battery,
Temperature Probe (3073 only)

Digital Automotive  Clamp-on Meter

CM-04



Click image to enlarge - AC/DC Automotive Clamp Meter



PRICE: $296.40

Features:

  • DC/AC Resolution 0.01A

  • Jaw Size 23mm Diameter

  • DCA, —| |— , One Touch Zero

  • Autorange °C (or °F), —| |— , V,

  • Continuity

  • 0-9999RPM

  • 3-3/4 Digits (4000 Counts)

  • Max/Min/Hold/Relative




 CE CAT. II 600V
General Specifications

Conductor Size: 23mm Diameter
Battery: 1.5V AA UM3 Battery x 2
Display: 3-3/4 Digits (4000 Counts)
Range Selection: Auto and Manual
Power Consumption: 10mA Approx.)
Sampling Time: 2 Times/Sec. (Digital), 20 Times/Sec. (Bargraph)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: Less than 85% RH
Dimension: 183mm(L) x 63.6mm(W) x 35.6mm(H) 7.2”(L) x 2.5”(W) x 1.4”(H)
Weight: 190g (Batteries included)

Electrical Specification (23°C ± 5°C) DC Current
Range: 40A/0-150A/150-200A
Resolution: 10mA/0.1A
Accuracy: ± 1.5% rdg ± 2 dgts/± 1.5% rdg ± 3 dgts
Overload Protection: 400A

AC Current
Range: 40A/0-150A/150-200A
Resolution: 10mA/0.1A
Accuracy (of reading):
± 1.5% rdg ± 3 dgts/± 2.0% rdg ± 3 dgts (50/60Hz)
± 2.5% rdg ± 3 dgts/± 3.0% rdg ± 3 dgts (40H-1KHz)
Overload Protection: 400A

DC Voltage (Autorange & Manual,
Overload Protection 800VAC):
Range: 400mV/4V/40V/400V/600V
Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
Accuracy: ± 1.5% rdg ± 3 dgts
Input Impedance: 10M/5M
AC Voltage (Autorange & Manual,
Input Impedance 5M):
Range: 4V/40V/400V/600V
Resolution: 0.001V/0.01V/0.1V/1V
Accuracy: ± 1.5% rdg ± 5 dgts
Overload Protection: 800VAC

Resistance () & Audible Continuity (Open Circuit Voltage 0.5V):
Range: 40~400
Resolution: 0.1
Accuracy: ± 1.0% rdg ± 5 dgts
Beeper: 40 (approx.)
Overload Protection: 600VAC

Resistance () (Autorange & Manual, Open Circuit Voltage 0.5V):
Range: 400/4K/40K/400K/4M/40M
Resolution: 0.1/1/10/100/1K/10K
Accuracy: ± 1.5% rdg ± 3 dgts
Overload Protection: 600VAC

Capacitance (Autorange & Manual):
Range: 4nF/40nF/400nF/4uF/40uF/
Resolution: 1pF/10pF/0.1nF/1nF/10nF
Accuracy: ± 5% rdg ± 0.2nF/± 3.0% ± 0.2nF
Overload Protection: 600VAC

TEMP K TYPE °C (Autorange & manual, °F optional):
Range: -40~0°C/0~400°C/400~1000°C
Resolution: 0.1°C/1°C
Accuracy: ± 2.0% ± 2°C/± 0.5% ± 1°C/± 0.8% ± 1°C
Overload Protection: 600VAC/600V

Accessories: Adaptor (for K-type Thermocouple and Capacitor), K-type Thermocouple, Carrying Bag, Users Manual, 1.5V Battery

Option: RPM Adaptor

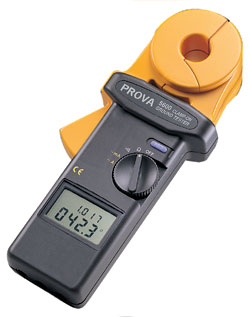

Ground Resistance Meter

Prova 5600

Clamp-on Ground Tester





PRICE: $828.00





Features:

  • Non-Contact Ground Resistance Measurement

  • No Auxiliary Electrode Needed

  • 0.025 - 1500

  • Ground Wire O 23mm/0.9”

  • Leakage Current (0.200mA - 10.00mA)

  • Hi-Lo Alarm (Go - No Go)








Email us if you have any questions.

Place an order

Back to the main page

A1 Electronic Parts
196 North Queen St.
Toronto, Ontario
M9C 4Y1
Tel: (416) 255-0343
Fax: (416) 255-4617
General Specifications:

Jaw Opening: 23mm (0.9”)
Power Source: 9V Battery
Power Consumption: 40mA
Operating Temperature: 0°C to 40°C
Operating Humidity: Less than 80% RH
Dimensions: 258mm(L) x 100mm(W) x 47mm(H)
10.2”(L) x 4”(W) x 1.9”(H)
Weight: 640g (1.4lbs)

Electrical Specifications: (23°C ± 5°C)

Groud Resistance (Autorange):
Range

  • 0.025 ~ 0.250

  • 0.250 ~ 9.999

  • 10.00 ~ 99.99

  • 100.0 ~ 199.9

  • 200.0 ~ 400.0

  • 400.0 ~ 600.0

  • 600.0 ~ 1500.0


Resolution


  • 0.002

  • 0.02

  • 0.04

  • 0.4

  • 2

  • 5

  • 20


Accuracy of reading1


  • ±1.5% ±0.05

  • ±1.5% ±0.1

  • ±2.0% ±0.3

  • ±3.0% ±1.0

  • ±5.0% ±5

  • ±10% ±10

  • ±20% (Approx.)


1 Loop resistance noninductive, external field < 50A/m, external electrical field < 1V/m, conductor centered.

2 Resistance Measurement Frequency: 1.667KHz


 Continuity
Beep if resistance < 40.00 (Approximately)

Ground / Leakage Current (Autorange, 50/60Hz, True RMS, Crest Factor < 3.0)

Range

  • 0.200 ~ 1.000mA

  • 1.00 ~ 10.00mA

  • 10.0 ~ 100.0mA

  • 100 ~ 1000mA


Resolution


  • 0.001mA

  • 0.01mA

  • 0.1mA

  • 1mA


Accuracy of reading1


  • ±2.5% ±0.05mA

  • ±2.5% ±0.05mA

  • ±2.0% ±0.3mA

  • ±2.0% ±3mA


Ground / Leakage Current (50/60Hz, True RMS, Crest Factor < 3.0)
Range


  • 0.20 ~ 10.00A


Resolution


  • 0.01A


Accuracy of reading1


  • ±2.0% ±0.03A

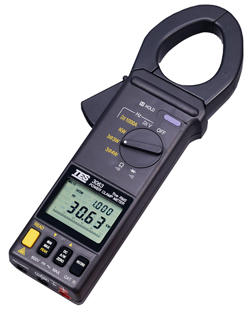

Power AC/DC Clamp Meter





TES-3063





PRICE: $718.80

























Email us if you have any questions.

Place an order

Back to the main page

A1 Electronic Parts
196 North Queen St.
Toronto, Ontario
M9C 4Y1
Tel: (416) 255-0343
Fax: (416) 255-4617

Features:

    • RS-232 Interface to talk with PC

    • 4 digits with dual Display LCD

    • Amp/Voltage Frequency Measurement

    • Dual display KW + FP, KVA + PF, V+A

    • 4000 Continuity Point Data Logger, 25 point manual Data Logger

    • True Power / Apparent Power / Power Factor Measurement

    • True RMS. V, A, W, cap, Ind, phase indicator

    • MIN / MAX Measurement

    • PEAK HOLD Detector

    • Dual display A + Hz , V + Hz

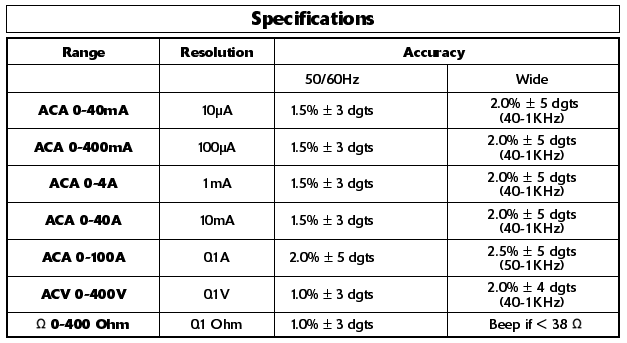

Leakage Current Tester





PROVA CM-03





PRICE: $288



Accessories:
Carrying Case, Instruction Manual, Safety Test Leads, Battery

Features:

  • AC 10µA Resolution
  • 30mm Conductor Diameter
  • ACA 5 Ranges (40mA, 400mA, 4A, 40A, 100A)

  • 10µA Ultra High Resolution

  • Wide Frequency Response 40Hz-1KHz
  • ACA, AVC, , and Continuity
  • Large 3-3/4 digits LCD (4000 counts)
  • Fast Bar-Graph Display (20 times/sec.)
  • Data Hold and Max/Min Hold
  • Relative Measurement
  • 600Vrms Overload Protection
    for Ohm Measurement
  • Power source: 2 x 1.5V SUM-3 battery
  • Operation Temperature:
    2-10°C — 50°C at 85% max. relative
    •

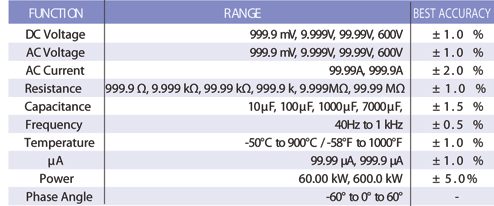

TES-3079 HVAC

Digital Clamp-on Meter

Price: $283.46

Specifications

      (In Stock)

CAT III 600V POLLUTION 2



Phase Angle
Range Resolution  Accuracy Overload Protection
-45°~ 0° ~ 45°    0.1°  ±3.0° ACV>100V, ACA>1

Temperature (K-Type thermocouple)
Range Resolution Accuracy Overload Protection
-50°C to 900°C 0.1°C  ±1% ±1°C 30VAC or 60VDC
-58°F to 1000°F 0.1°F  ±1% ±2°F

Resistance (continuity <40Ω on the 999.9Ω range)
Range Resolution Accuracy Overload Protection
999.9Ω 100mΩ ±1% ± 10dgts       600V
9.999KΩ 1Ω
99.99Ω 10Ω
999.9KΩ 100Ω
9.999MΩ 1KΩ ±5% ± 10dgts
99.99MΩ 10KΩ

Frequency
Range Resolution Accuracy Overload Protection
40Hz/1KHz 0.1Hz ±0.5%rgd±2dgts ACV>.2V,ACA>6A

AC Current (50Hz to 400Hz) : Trms
Range Resolution Accuracy   Overload Protection
99.99A 10mA ±2% ± 20dgts      1000A
999.99A 100mA ±4% ± 20dgts

µA TRMS: (AC+DC) (Burden Voltage: 5mV/µA
Range Resolution Accuracy   Overload Protection
99.99µA 10nA ±1% ± 20dgts               600V
999.9µA 100nA ±1% ± 20dgts

Capacitance
Range Resolution Accuracy   Overload Protection
10.000µF 1nF ±1.5% ± 5dgts            600V
100.00µF 10nF
1000.0µF 100nF ±2.5% ± 15dgts
7000µF 1µF

Apparent Power
Range Resolution Accuracy  Overload Protection
60.00KVA 10VA ±2.5rdg ± 20dgts 600VAC/1000AAC
600.0KVA 100VA ±2.5rdg ± 20dgts

DC Voltage
Range Resolution Accuracy  Overload Protection
999.9mV 0.1mV
9.999V 1mV   ±1% ± 20dgts        600V
99.99V 10mV
600.0V 100M

AC Voltage (50Hz to 400Hz) : Trms
Range Resolution Accuracy  Overload Protection
999.9mV 0.1mV  ±1% ± 20dgts(50-60Hz)

 ±1% ± 20dgts (40-100Hz)

       600V
9.999V 1mV
99.99V 10mV
600.0V 100mV

Accessories

Carrying case, instruction manual, batteries, test probe, temperature probe.

TES-500 Digital Clamp-on Meter

Price: $69.12





Features:

  • No residual magnetism among each current measurements


  • Accurate for 50Hz & 60Hz current measurement


  • Safety test lead jack avoids any electrical shock


  • No separate attachment required for ohm test


  • Convenient temperature test range


AC current: 0-6A, 15A, 60A, 150A, 300A, 600A
AC voltage: 0-150V, 300V, 600V
Resistance: 0-2K (Mid-scale 40 ohm) 0-200K (Mid-scale 4K ohm)
Temperature: -50°C to +200°C
Frequency: 50/60Hz
Jaw capacity: 40mm
Accuracy: ACA ± 3% of F.S.
ACAV ± 3% of F.S.
Ohm ± 3% of Scale length
Temp. ± 3% of Scale length
Power source: “AA” 1.5V x 1
Fuse: 0.5A 250V, 5 x 20mm fast blow
Size & Weight: 198 x 84 x 15mm 380g Approx.
Accessories:
* Carrying case, Instruction manual & Safety test leads
Optional Accessories: TP-R01 temperature probe





TES-3070 AC/DC Clamp Meter

PRICE: $150



Features:

  • 4000 Count Reading

  • Auto Reading for Hz Measurement

  • Data Hold / Peak Hold

  • AC 600A


IEC 1010
CAT III POLLUTION 2 600V
A: General Measurement
Voltage (AC/DC)
Range: DC - 600V
AC - 400V/600V
Accuracy: DC - 0.75% rdg + 2 dgts
AC - 1.2% rdg + 5 dgts
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Ohms (Resistance)
Range: 4K
Accuracy: 1% rdg + 5 dgts
Resolution: 0.001K
Overload Protection: 660Vrms
Max Open Circuit Voltage: 0.5VDC
Current (DC/AC) DC for TES-3080, 3082
Range: 400/600A
Accuracy: 2% rdg + 5 dgts
Resolution: 0.1/1A
Overload Protection: 800A
Frequency (Hz)
Range: 4KHz/20KHz
Accuracy: 0.5% rdg + 5 dgts
Resolution: 0.1Hz/1Hz
Max Input Sensitivity: 5A/1V
Overload Protection: 800A/750V
Audible Continuity
Continuity beeper below 40
Max Open Circuit Voltage: 3.2V
Overload Protection: 660Vrms
Diode Test
Resolution: 0.001V
Accuracy: 1% rdg + 2 dgts
Overload Protection: 660Vrms		 B: Peak Hold Measurement
Current (AC)
Range: 400/600A
Accuracy: 2% rdg + 10 dgts
Resolution: 0.1A/1A
Overload Protection: 800A
Voltage (AC)
Range: 400/600V
Accuracy: 1.5% rdg + 10 dgts
Resolution: 0.1V/1V
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Capacitance (µF) for TES-3073
Range: 0~2000µF
Resolution: 1µF
Accuracy: (3% + 5)
Test Frequemty: 2Hz
Temperature (K Type) for TES-3073
Range: -50°C~1000°C / -50°F~2000°F
Resolution: 1°C / 1°F
Accuracy: ± (2% + 2°C)
± (3% + 4°F)
Accessories
Carrying Case, Instruction Manual,
Safety Test Leads, Battery,
Temperature Probe (3073 only)

TES-3080 AC/DC Clamp Meter

PRICE: $198



Features:

  • 4000 Count Reading

  • AC/DC 600A

  • DCA One-touch-Zero

  • Data Hold / Peak Hold

  • Auto Power Off

IEC 1010
CAT III POLLUTION 2 600V
A: General Measurement
Voltage (AC/DC)
Range: DC - 600V
AC - 400V/600V
Accuracy: DC - 0.75% rdg + 2 dgts
AC - 1.2% rdg + 5 dgts
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Ohms (Resistance)
Range: 4K
Accuracy: 1% rdg + 5 dgts
Resolution: 0.001K
Overload Protection: 660Vrms
Max Open Circuit Voltage: 0.5VDC
Current (DC/AC) DC for TES-3080, 3082
Range: 400/600A
Accuracy: 2% rdg + 5 dgts
Resolution: 0.1/1A
Overload Protection: 800A
Frequency (Hz)
Range: 4KHz/20KHz
Accuracy: 0.5% rdg + 5 dgts
Resolution: 0.1Hz/1Hz
Max Input Sensitivity: 5A/1V
Overload Protection: 800A/750V
Audible Continuity
Continuity beeper below 40
Max Open Circuit Voltage: 3.2V
Overload Protection: 660Vrms
Diode Test
Resolution: 0.001V
Accuracy: 1% rdg + 2 dgts
Overload Protection: 660Vrms		 B: Peak Hold Measurement
Current (AC)
Range: 400/600A
Accuracy: 2% rdg + 10 dgts
Resolution: 0.1A/1A
Overload Protection: 800A
Voltage (AC)
Range: 400/600V
Accuracy: 1.5% rdg + 10 dgts
Resolution: 0.1V/1V
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Capacitance (µF) for TES-3073
Range: 0~2000µF
Resolution: 1µF
Accuracy: (3% + 5)
Test Frequemty: 2Hz
Temperature (K Type) for TES-3073
Range: -50°C~1000°C / -50°F~2000°F
Resolution: 1°C / 1°F
Accuracy: ± (2% + 2°C)
± (3% + 4°F)
Accessories
Carrying Case, Instruction Manual,
Safety Test Leads, Battery,
Temperature Probe (3073 only)

TES-3082 AC/DC Clamp Meter

PRICE: $150



Features:

  • True RMS Reading

  • 4000 Count Reading

  • AC/DC 600A

  • DCA One-touch-Zero

  • Auto Power Off

IEC 1010
CAT III POLLUTION 2 600V
A: General Measurement
Voltage (AC/DC)
Range: DC - 600V
AC - 400V/600V
Accuracy: DC - 0.75% rdg + 2 dgts
AC - 1.2% rdg + 5 dgts
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Ohms (Resistance)
Range: 4K
Accuracy: 1% rdg + 5 dgts
Resolution: 0.001K
Overload Protection: 660Vrms
Max Open Circuit Voltage: 0.5VDC
Current (DC/AC) DC for TES-3080, 3082
Range: 400/600A
Accuracy: 2% rdg + 5 dgts
Resolution: 0.1/1A
Overload Protection: 800A
Frequency (Hz)
Range: 4KHz/20KHz
Accuracy: 0.5% rdg + 5 dgts
Resolution: 0.1Hz/1Hz
Max Input Sensitivity: 5A/1V
Overload Protection: 800A/750V
Audible Continuity
Continuity beeper below 40
Max Open Circuit Voltage: 3.2V
Overload Protection: 660Vrms
Diode Test
Resolution: 0.001V
Accuracy: 1% rdg + 2 dgts
Overload Protection: 660Vrms		 B: Peak Hold Measurement
Current (AC)
Range: 400/600A
Accuracy: 2% rdg + 10 dgts
Resolution: 0.1A/1A
Overload Protection: 800A
Voltage (AC)
Range: 400/600V
Accuracy: 1.5% rdg + 10 dgts
Resolution: 0.1V/1V
Input Impedance: 10M
Overload Protection: DC 1000V & AC 750V
Capacitance (µF) for TES-3073
Range: 0~2000µF
Resolution: 1µF
Accuracy: (3% + 5)
Test Frequemty: 2Hz
Temperature (K Type) for TES-3073
Range: -50°C~1000°C / -50°F~2000°F
Resolution: 1°C / 1°F
Accuracy: ± (2% + 2°C)
± (3% + 4°F)
Accessories
Carrying Case, Instruction Manual,
Safety Test Leads, Battery,
Temperature Probe (3073 only)

  •

    TES-3040  Digital Clamp-on Meter

                    PRICE: $158.40



    Numerical Display: 3-3/4 digits liquid crystal display (LCD) maximum

    reading 3999
    Over Range Indication: LCD will show an "OL"
    Sampling Rate: 20 times/sec (Bar-Graph) 2 times/sec (Digital Display)
    Power Source: One 006p 9V or IEC 6F22 or NEDA 1604 Battery
    Battery Life:  300hr approx.
    Polarity: Automatic polarity
    Auto Power off time: Approx. 30 minutes negative input
    Operating Temperature 0°C to 40°C
    and Humidity:  (32°F to 104°F) below 80% RH
    Storage Temperature -10°C to 60°C
    and Humidity:  (14°F  to 140°F ) below 70% RH.
    Dimensions:  239(L) x 66 (W) x 34(H) mm
    Weight:  Approx. 365g
    Jaw Opening: 46mm
    Ordering information:  TES-3040

                                   DC Voltage (Autorange & Manual)
    Range:  400mmV/4V/40V/400V/600V
    Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
    Accuracy: ± 0.75% rdg+2 dgts
    Overload Protection: 660Vrms

                                  AC Voltage (Autorange & Manual)
    Range:  4V/40V/400V/600V
    Resolution: 0.001V/0.01V/0.1V/1V
    Accuracy: ± 1.2% rdg +5 dgts/± 1.5% rdg +5 dgts
    Overload Protection:  660Vrms
    Resolution: 0.001V/0.01V/0.1V/1V
    Frequency Response:  40-450Hz

                                     AC Current (Autorange & Manual)
    Range:

     400A/1000A
    Resolution:  0.1A/1A
    Accuracy:  ± % rdg +5 dgts.
    Overload Protection: 1100A
    Frequency Response:  40-450Hz
                                    Frequency (Hz) (Autorange only)
    Range:   100Hz/1KHz/10KHz/100KHz/1000KHz
    Resolution:   0/01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz
    Accuracy: ± 0.5 rdg + 2 dgts
    Sensitivity:  100mV or 1A
    Overload Protection: 1100A/600Vrms
                             Resistance (Ω) (Autorange & Manual)
    Range:

     400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
    Resolution:  0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ/0.01MΩ
    Accuracy:

    ± 1% rdg +2 dgts        ±1.5% rdg +2 dgts
    Overload Protection: 600Vrms
    Accessories Carrying Case, Instruction Manual, Safety Test Leads,

    Battery





                          TES-3050 AC/DC  Digital Clamp-on Meter

                                    PRICE: $303.32



    Numerical Display: 3-3/4 digits liquid crystal display (LCD) maximum reading

     3999
    Over Range Indication:  LCD will show an "OL"
    Sampling Rate: 20 times/sec (Bar-Graph) 2 times/sec (Digital Display)
    Power Source: One 006p 9V or IEC 6F22 or NEDA 1604 Battery
    Battery Life: 30hr approx.
    Polarity: Automatic polarity
    Auto Power off time: Approx. 30 minutes
    Operating Temperature 0°C to 40°C
    and Humidity: (32°F to 104°F) below 80% RH
    Storage Temperature -10°C to 60°C
    and Humidity: (14°F  to 140°F ) below 70% RH.
    Dimensions: 239(L) x 66 (W) x 34(H) mm
    Weight: Approx. 365g
    Jaw Opening: 46mm
    Ordering information: TES-3050

                                   DC Voltage (Autorange & Manual)
    Range:  400mmV/4V/40V/400V/600V
    Resolution:  0.1mV/0.001V/0.01V/0.1V/1V
    Accuracy:  ± 0.75% rdg+2 dgts
    Overload Protection: 660Vrms

                                 DC Current (Autorange & Manual)
    Range: 400A/1000A
    Resolution: 0.1mA/1A
    Accuracy: ± 2% rdg +25 dgts.
    Overload Protection: 1100A

                                AC Voltage (Autorange & Manual)
    Range:  4V/40V/400V/600V
    Resolution:  0.001V/0.01V/0.1V/1V
    Accuracy: ± 1.2% rdg +5 dgts/± 1.5% rdg +5 dgts
    Overload Protection: 660Vrms

    Frequency Response:

    		  40-450Hz
                               Frequency (Hz) (Autorange only)
    Range: 100Hz/1KHz/10KHz/100KHz/1000KHz
    Resolution: 0.01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz
    Accuracy: ± 0.5 rdg + 2 dgts
    Overload Protection: 1100A/600Vrms

    Sensitivity:

    		 100mV or 1A
                              Resistance (Ω) (Autorange & Manual)
    Range: 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
    Resolution: 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ/0.01MΩ
    Accuracy: ± 1% rdg +2 dgts     ±1.5% rdg +2 dgts
    Overload Protection:  600Vrms
    Accessories: Carrying Case, Instruction Manual,

    Safety Test Leads, Battery

    •
