ADJUSTABLE POWER SUPPLIES




REGULATED DC POWER SUPPLIES         0 - 15 VDC

Constant voltage and current source
Voltage/current outputs continuously adjustable
Current restriction, short-circuit and reverse polarity protection
Temperature-controlled fan cooling (some models)
Double power can be used both in series and parallel connection,
series voltage or parallel current is the sum of the double power
Safety design as per IEC1010-1 standard




Dimensions   :  250 x 240 x 160mm

LED Digital Display


GWR-1510D ( Linear)

$119.00

Input voltage AC 110V 10%   50 /60Hz
Output voltage 0 - 15 VDC
Current output 0 - 10 A
Working  conditions Temperature: -10C to 40C
Relative humidity < 90%

Dimensions   :  310 x 200 x 140mm


LED Digital Display


GWR-1520D  ( Linear)



$149.00

Input voltage

AC 110V 10%   50 /60Hz

Output voltage

0 - 15 VDC

Current output

0 - 20 A

Working  conditions

Temperature: -10C to 40C

Relative humidity

< 90%





LED Digital Display


Dimensions   :  310 x 200 x 140mm
Part Number Input voltage Output voltage Current output Working  conditions Relative humidity Price Paypal
GWK-1530D
( Switching)
AC 110V 10%   50 /60Hz 0 - 15 VDC 0 - 30 A Temperature:
-10C to 40C
< 90% $179.00

GWK-1550D
( Switching)

0 - 50 A $221.00





LED Digital Display


Dimensions   :  330 x 260 x 160mm
Part Number Input voltage Output voltage Current output Working  conditions Relative humidity Price Paypal
GWK-1580D
( Switching)
AC 110V 10%   50 /60Hz 0 - 15 VDC 0 - 80 A Temperature:
-10C to 40C
< 90% $349.00

GWK-15100D
( Switching)
0 - 100 A $390.00






REGULATED DC POWER SUPPLIES
0 - 30 V
DC


Dimensions   :  252 x 150 x 171mm


LED Digital Display


GW-3005S

$139.00



Input voltage AC 110V 10%   50 /60Hz
Output voltage 0 - 30 VDC
Current output 0 - 5 A
Working  conditions Temperature: -10C to 70C
Relative humidity < 80%



Dimensions   :  291 x 158 x 136mm


GW-3005C

Was: $144.00
$134.00

  • Single high-stabilized constant voltage and current;
  • Voltage/ current outputs continuously adjustable;
  • Current restriction and short-circuit protection;
  • Double power can be used both series and parallel connection, series voltage or parallel current is the sum of the double power
Input voltage AC 110V 10%   50 /60Hz
Output voltage 0 - 30 VDC
Current output 0 - 5 A
Source Effect < 0.02% + 1mV
Load Effect < 0.01% + 5mV
Ripple & Noise <1mVrms
Weight 3 - 6 kgs




Dimensions   :  365x265x164mm






Double
LED Digital Display


GW-3010E

$198.99

Input voltage AC 110V 10%   50 /60Hz
Output voltage 0 - 30 VDC
Current output 0 - 10 A
Ripple and Noises ≤0.5mVrms
Line regulation CV ≤ 0.02% + 3mV
CC ≤ 0.05% + 3mA
Weight 10-20kgs

Dimensions   :  365x265x164mm








Double
LED Digital Display

GW-3020E

Was: $317.50
$277.50

Input voltage AC 110V 10%   50 /60Hz
Output voltage 0 - 30 VDC
Current output 0 - 20 A
Ripple and Noises ≤1.0mVrms
Line regulation CV ≤ 0.02% + 3mV
CC ≤ 0.05% + 3mA
Weight 10-20kgs

Dimensions   :  310 x 200 x 140mm


LED Digital Display


GWK-3030D ( Switching)

$399.00

Input voltage AC 110V 10%   50 /60Hz
Output voltage 0 - 30 VDC
Current output 0 - 30 A
Working  conditions Temperature: -10C to 40C
Relative humidity < 90%




Dimensions   :  330 x 260 x 160mm

LED Digital Display


GWK-3050D ( Switching)

$499.00

Input voltage AC 110V 10%   50 /60Hz
Output voltage 0 - 30 VDC
Current output 0 - 50 A
Working  conditions Temperature: -10C to 40C
Relative humidity < 90%






REGULATED DC POWER SUPPLIES
0 - 50 V
DC


Dimensions   :  365x265x164mm


Double
LED Digital Display

GW-5020E

$365.00

Input voltage AC 110V 10%
Output voltage 0 - 50 VDC
Current output 0 - 20 A
Ripple and Noises ≤3.0mVrms
Line regulation CV ≤ 0.02% + 3mV
CC ≤ 0.05% + 3mA
Weight 10-20kgs






DOUBLE
REGULATED DC POWER SUPPLIES      0 - 30 V
DC


 Dimensions   :  365x265x164mm

GW3003C-2
$198.99

  • Double high-stabilized constant voltage and current;
  • Voltage/ current outputs continuously adjustable;
  • Current restriction and short-circuit protection;
Accuracy  Voltage: 1.0% + 2dgts
 Current:  1.5% + 2 dgts
Input voltage AC 110V 10%
Output voltage 2 x 0-30V
Current output 2 x 0 - 3A
Source Effect ≤0.02% +1mV
Load Effect ≤0.01% +5mV
Ripple & Noise ≤1mVrms






Dimensions   :  365x265x164mm


Four 3 1/2
 LED Digital Display

GW-3005D-2

Was: $274.80
$239.00

  • Double high-stabilized constant voltage and current;
  • Voltage/ current outputs continuously adjustable;
  • Current restriction and short-circuit protection;
Accuracy Voltage: 1.0% + 2dgts
 Current:  1.5% + 2 dgts
Input voltage AC 110V 10%
Output voltage 2 x 0 - 30V
Current output 2 x 0 - 5A
Source Effect < 0.02% + 1mV
Load Effect < 0.01% + 5mV
Ripple & Noise <1mVrms








DOUBLE
REGULATED DC POWER SUPPLIES      0 - 50 V
DC



Dimensions   :  365x265x164mm









Four 3 1/2
 LED Digital Display

GW-5005E-2

Was: $299.00
$284.00

  • Double high-stabilized constant voltage and current;
  • Voltage/ current outputs continuously adjustable;
  • Current restriction and short-circuit protection;
Accuracy Voltage: 1.0% + 2dgts
 Current:  1.5% + 2 dgts
Input voltage AC 110V 10%
Output voltage 2 x 0 - 50V
Current output 2 x 0 - 5A
Source Effect < 0.02% + 1mV
Load Effect < 0.01% + 5mV
Ripple & Noise <1mVrms




TRIPLE
REGULATED DC POWER SUPPLIES      0 - 30 V
DC

  LED Digital Display

GW-3005D-3

 $274.00

Input voltage AC 110V 10%
Output voltage 2 x 0 - 30V
Current output 2 x 0-5A
Fixed Output 5V, 3A






Programmable DC Power Supply


3645A
$390.00

Product Description
3600 series Power Supply is a high performance single-output programmable DC power source. It is easy to control from the front panel, or via the serial port by the computer. Up to 10 settings can be stored for later recall. The low noise, excellent regulation, and built-in voltmeter/ammeter make this reliable power supply well suited for the exact needs of design, education, test and manufacture.

Features:
LCD display with backlight
Number keypad and rotary knob
Constant voltage & constant current mode
Low output ripple & noise
Output on/off
Multifunction menu
Maximum output voltage/power limitation
High program resolution
Over temperature/over current/over power protection
10 parameters storage
Can be controlled by PC
Can be connected in series and parallel to expand output voltage and current

Specifications:
3645A 1 0 ~ 36V 3A 108W

Weight 6.00kg

Dimensions
212.6mm W x 88.1mm H x 250mm D

Software
PowerMS Power Management System software, ActiveX and DLL tools
Support VB, VC++, DELPHI, LABVIEW
Standard accessories
User's manual, Ac cable, handlebars, software CD

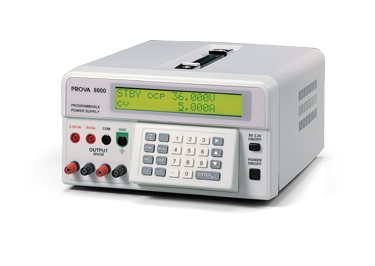

PROVA 8000

$836.00

  • Switching Technology, Analog Quality
  • One Programmable Output 0-36V/5A, Two Fixed Outputs
  • High Stability, Low Drift
  • Over-Voltage, Over-Current Protection
  • OCP With Programmable Timer
  • Built-in Buzzer Alarm 120 Sets Memory
  • Stby / Operate Button 3U High For Rack Mounting

Specifications:

Outputs: 1 Programmable - 2 Fixed
Fixed Output: 5V/2A, 3.3V/3A
Programmed Voltage (CV, Constant Voltage Mode): Range - 0 ~ 40V,
Resolution - 1mV, Accuracy - 0.5% 9mV
Programmed Current (CV, Constant Current Mode): Range - 0 ~ 5A,
Resolution - 1 mA, Accuracy - 0.2% 9mA
Voltage Readback (CC, Constant Voltage Mode): Range - 0.1 ~ 40V,
Resolution - 1 mV, Accuracy - 0.1% 9mV
Current Readback (CC, Constant Voltage Mode): Range - 0.05 ~ 5A,
Resolution - 1 mA, Accuracy - 0.2% 9 mA
Ripple & Noise (20Hz ~ 20MHz): Voltage (mVrms) - <15mV,
Current (mArms) - <8mA
Readback Temperature Coefficient: Voltage (25 5C) - 100 ppm/C
Response Time: Voltage Up - 150mS, Voltage Down - 150mS
Restoring Time: Constant Voltage Mode - 500S
Protection Function: OCP With Programmable Timer (0.01 ~ 60 Sec.) - OVP
Output STBY/Operate
Display (STN LCD+BACK LIGHT)
Power Source: ACP 110V or 220V, 50/60Hz
Accessories: Power CORDX1, Users Manualx1
Dimensions & Weight: 310(L) x 250(W) x 135(H)mm, 3.8 kgs (Approx.)





NOTE: Pictures might slightly differ from the original product.
