Terminal Blocks

# of Pins Part # Measurements
(Length)
Price Paypal

4 Pin

DK4130A04

2.12"(5.5cm)

$2.50

Item # A B C D E F Rated
8 Pin

DK4130A08

3.75" (9.5cm)

$3.50


DK4130Axx 9.5 9.50xP+17.0 9.5x(P+1) 19.5 7.5 11.9 600V 10A 12 Pin DK4130A12 5.25" (13.3cm) $4.50





# of Pins Part # Measurements
(Length)
Price Paypal
4 Pin DK4130B04 2.5" (6.5cm) $2.90

Item # A B C D E F Rated 8 Pin DK4130B08 4.25" (10.07cm) $3.90

DK4130Bxx 10.9 10.9xP+19.9 10.9x(P+1) 12.0 9.0 13.2 600V 20A 12Pin DK4130B12 6.00"(15.00cm) $6.00







# of Pins Part # Measurements
(Length)
Price Paypal
4Pin



DK4130C04



3.48"(8.1cm) $2.90

Item # A B C D E F Rated 8 Pin DK4130C08 5.47"(3.75cm) $4.50




DK4130Cxx 14.0 14.0xP+24.0 14.0x(p+1) 34.0 12.0 17.0 600V 30A 12Pin DK4130C12 7.25"(19.1cm) $6.50







Materials:
Housing: Polyamid 6.6
Terminals: Tin plated brass
Contacts: Nickel plated brass
Electrical:
Ratings: 8A @ 300 Volts
Wire size: 14 AWG maximum

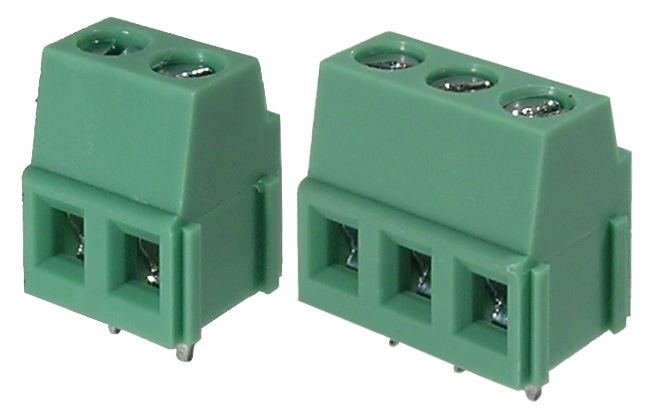

These lock together forming a continuous 5mm spacing terminal block
Part No.
Position
Price PayPal
58-102-0 2 $1.10

58-103-0 3 $1.44




Materials:
Housing:    Polyamid 6.6
Terminals: Tin plated brass
Contacts:   Nickel plated brass
Electrical:
Ratings:    10A @ 300 Volts
Wire size: 14 AWG maximum
These lock together forming a continuous 5mm spacing terminal block
Part No.

     Position

Price PayPal
58-112-0 2 $1.13

58-113-0 3 $1.85

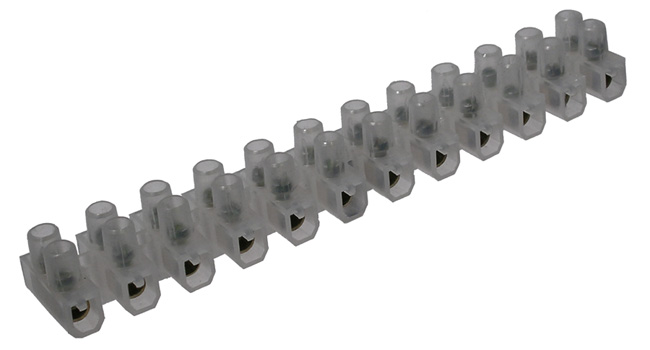

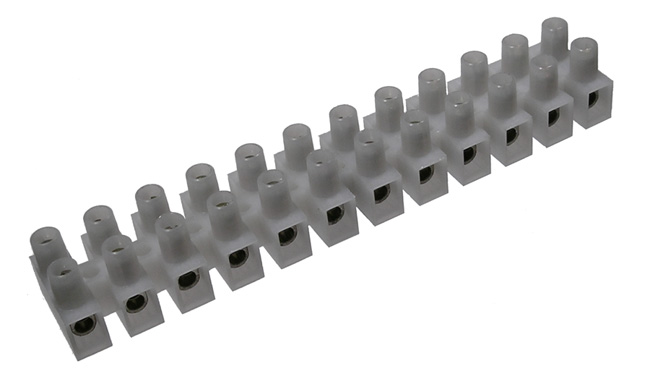

These 12 position flexible terminal blocks can be cut to length.





3 Amp / 380V
Length: 92mm

58-301-0

$1.99




6 Amp / 380V
Length: 113mm

58-302-0

$2.49





15 Amp / 380V
Length: 139mm

58-303-0

$3.05


41 Amp / 500V
Length: 140mm

4134A12

$4.99


57 Amp / 500V
Length: 156mm

4134B12

$5.99




These flexible 12-position terminal blocks with wire
protectors are made of Nylon 66, UL94V2 and are
 approved by most agencies including CSA, UL, VDE, OVE





Current:  UL       20 Amps/600V
                CSA    10 Amps/400V
Wire:
UL      12-22 AWG
             CSA    18-20AWG

Length: 95mm

58-308-0

$3.43


Current:  UL       30 Amps/600V
               CSA    20 Amps/400V
Wire:
UL      10-22 AWG

CSA    14-18AWG

Length: 116.5mm

58-312-0

$4.99



Terminal block with numbers
Length: 70mm

$ 2.00




35 mm DIN RAIL TERMINAL BLOCKS


TERMINAL BLOCKS
20Amp 600VAC

Suitable for wire sizes
22 to 10 AWG

58-425-0
$ 1.56

TERMINAL BLOCKS
30Amp 600VAC

Suitable for wire sizes
 22 to 10 AWG

58-400-0
$ 1.56


SIDE COVER FOR 58-425-0 and 58-400-0

58-401-0
$ 0.39

TERMINAL BLOCKS
40Amp 600VAC

Suitable for wire sizes
8 to 22 AWG

58-402-0
$ 1.89

TERMINAL BLOCKS
60Amp 600VAC

Suitable for wire sizes
6 to 18 AWG

58-404-0
$ 1.89


SIDE COVER FOR 58-402-0

58-403-0
$ 0.72


SIDE COVER FOR 58-404-0

58-405-0
$ 0.72

TERMINAL BLOCKS
75Amp 600VAC

Suitable for wire sizes
6 to 16 AWG

58-406-0
$ 2.35

DIN RAIL END STOPPER

Suitable for locking terminals into position
on the rail

58-410-0
$ 0.74


SIDE COVER FOR 58-406-0

58-407-0
$ 0.72



FUSE TERMINAL


5 x 20 mm fuse - wire
sizes 22 to 10 AWG

58-412-0
$ 1.94

ALUMINUM DIN
RAIL

35 x 7.5 mm - 1
meter long

58-415-0
$ 7.60

SINGLE BLANK MARKERS

Single blank markers suitable for the 58-400-0,
58-402-0 and 58-425-0
terminal blocks.
 200 / Tray

58-426-0
$ 3.15

80 POSITION BRIDGE BAR FOR 58-425-0


On the picture only 12 are shown.

58-428-0
$26.00
