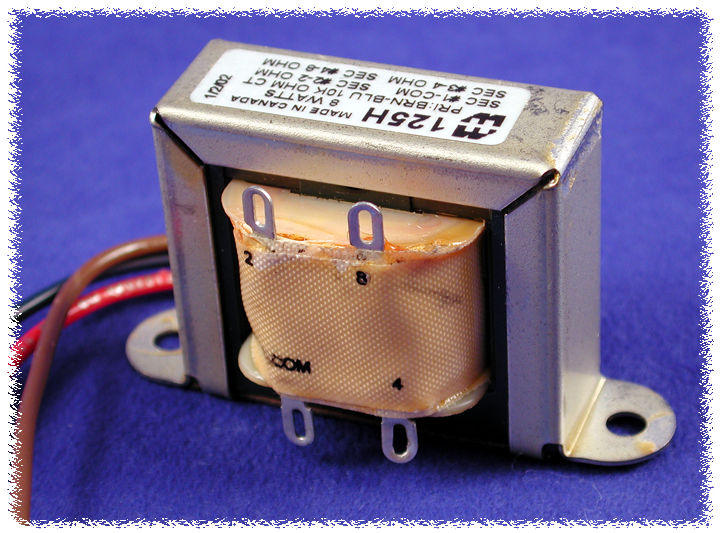

General Replacement Push-Pull Tube Output (8 Watt) 125H Series


Features

* Designed for general purpose or replacement use in push-pull tube output circuits.
* Frequency response: 150 Hz. - 15 Khz (+/- 1db max. ref. 1 Khz)
* Open style with minimum 5" long primary leads, secondary solder lugs for convenient secondary connections.
* Also see our 125J Series.
* For single ended use, see our 125SE Series.
* For more impedance options, see our universal impedance push-pull 125 Series.





Part Reader Audio Primary
Impedance
(Ohm)
Secondary
Impedance
(Ohms)
Primary Weight Overall Dimensions (inch) Mounting Price Paypal
Number File Watts Inductance (lbs.) A B C D Hole
125H 8 10K 2, 4 or 8 5.60H 0.55 2.81 1.00 1.63 2.38 0.19 $43.16
