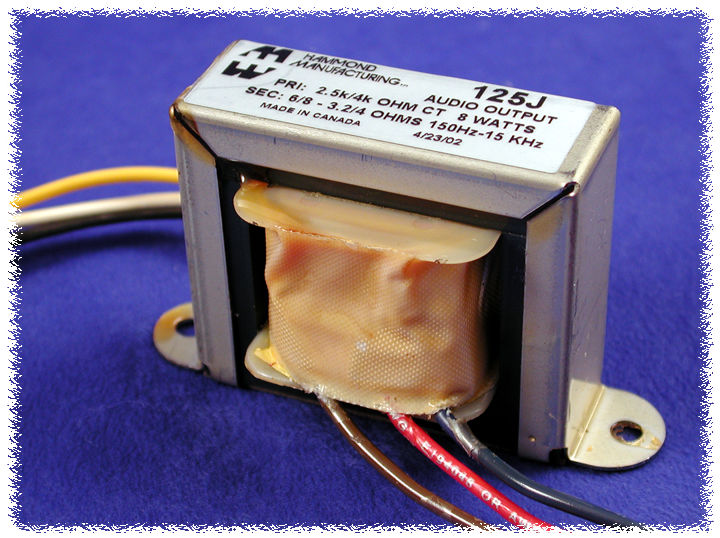

General Replacement Push-Pull Tube Output (8 Watt) 125J Series


Features

* Designed for general purpose or replacement use in push-pull tube output circuits.
* Frequency response: 150 Hz. - 15 Khz (+/- 1db max. ref. 1 Khz)
* Open style with minimum 10" long primary & secondary leads.
* Also see our 125H Series.
* For single ended use, see our 125SE Series.
* For more impedance options, see our universal impedance push-pull 125 Series.





Part Reader Audio Primary
Impedance
(Ohm)
Secondary
Impedance
(Ohms)
Primary Weight Overall Dimensions (inch) Mounting Price Paypal
Number File Watts Inductance (lbs.) A B C D Hole
125J 8 2.5K or 4K 6/8 or 3.2/4 5.60H 1 3.25 1.50 1.94 2.81 0.19 $43.16


          Hook-up Data

Primary Impedance
Plate to Plate

Brown to Blue
(Ohms)
Secondary Impedance
(Ohms)
Use Secondary
Lead Connections
4,000 C.T. 41857 WHT - GRN
4,000 C.T. 3.2 / 4 WHT - YEL
2,500 C.T. 41857 BLK - GRN
2,500 C.T. 3.2 / 4 BLK - YEL
