560 Picture 800 Picture
560, 800-844 Series
850 Picture
850 Series
BROADCAST QUALITY
AUDIO

Key Features (560 Series):

Cat. No.

Application

Nominal Impedance

Price

PayPal

Primary

Secondary

560C Emitter or mic to Line
12/48
150/600
 $55.44
560E Emitter or mic to Line
50/20
150/600
 $55.44
560G Isolating or Hybrid
150/600
150/600
 $55.44
560J Collector to Line or Line to Base
150/600
1200/4800
 $55.44
560L Collector to Line or Matching
150/600
5K/20K
 $55.44
560N Collector to Line
150/600
10K/40K
 $55.44
560Q Matching or Bridging
10k/40k
10K/40K
   $55.44

Mechanical & Schematic Data:

560 Line Art (Top)

560 Line Art (Bottom)
560 Schematic


Key Features (800 Series):

Cat. No.

Applicaton

Nominal Impedance

Max. Pri. D.C. Unbalanced ma

Price

PayPal

Primary

Secondary

801 Isolating, Matching
*50/200
50/200
0.8
 $98.56

802 Isolating, Matching
*50/200 (60/240)
125/500 (150/600)
0.8
 $98.56

804 Isolating, Matching, Hybrid
*125/500 (150/600)
125/500 (150/600)
0.5
 $98.56

806 Dynamic MIC or Voice Coil to Grid
*7.5/30
10K/40K
1.6
 $98.56

807 Dynamic MIC or Voice Coil to Base
*7.5/30
600/2400
1.6
 $98.56

808 MIC or Mixer to Single or P.P. Grid
*50/200
10000/40000
0.6
 $98.56

809 MIC to Mixer to Base
*50/200
600/2400
0.6
 $98.56

812 Line or 150 ohm MIC to 1 or 2 Grids
*125/500 (150/600)
10K/40K (12K/48K)
0.4
 $98.56

813 Line or 150 ohm MIC to Base
*125/500 (150/600)
600/2400 (720/2880)
0.4
 $98.56

832 Interstage (ratio 1:2)
5K/20K
20K/80K
0
 $98.56

834 Interstage (ratio 1:4)
5K/20K
10K/40K
0
 $98.56

835 Interstage (ratio 1:1)
10K/40K
10K/40K
0
 $98.56

841 ** P.P. Plates to Line
5K/20K
50/200
0
 $98.56

842 ** P.P. Plates to Line
5K/20K (6K/24K)
125/500 (150/600)
0
 $98.56

844 ** P.P. Plates to Line
10K/40K (12K/48K)
125/500 (150/600)

 $98.56

NOTES:
* Electrostatic shield between primary & secondary

** Single plate requires parallel feed. When operating at impedances below nominal, power capability is lower and the frequency spectrum is shifted downward, conversely, at higher impedances power capability and frequency spectrum will be shifted upward.

Mechanical & Schematic Data:

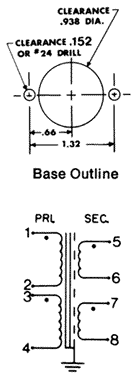

800 Line Art 800 Base + Schematic



Key Features (850 Series):

  • Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware (same as 800 series except low profile).
  • Hermetically sealed for stable characteristics and long life. Header has nine 0.22" long solder terminals.
  • Frequency response +/- 0.5 db max. from 20 Hz. to 20 Khz., except units over 5K ohms impedance, may be down 1 db @ 20 Khz.
  • Insertion loss of apx. 1 db.
  • Maximum power level +15 dbm. with specified characteristics, or higher levels with reduced low frequency performance.
  • Distortion is apx. 1.5% @ 20 Hz. under full power.
  • Electrostatic shield between pri. & sec. connected to terminal 9.
  • Humbucking construction
  • Balanced split windings on pri. & sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.
  • Overall dimensions 1.7" x 1.2" x 1.65" high max.
  • Shipping weight 0.4 lb.

Cat. No.

Applicaton

Nominal Impedance

Nominal Resistance
+/- 20%

Price

PayPal

Primary

Secondary

Primary

Secondary

850CA Emitter or MIC to Line
12/48
150/600
6
70
$119.84

850EA Emitter or MIC to Line
50/200
150/600
27
68
$119.84

850GA Line Isolation or Hybrid
150/600
150/600
71
71
$119.84

850HA Line Isolation or Hybrid
150/600
300/1200
70
140
 $119.84

850JA Output to Line, or Line to Base
150/600
1200/4800
69
570
$119.84

850LA Output to Line, Matching or Bridging
5K/20K
150/600
2240
69
 $119.84

850NA Output to Line, Matching or Interstage
150/600
10K/40K
65
4980
$119.84

850QA Interstage or Isolating
10K/40K
10K/40K
4890
4980
$119.84


Mechanical & Schematic Data:

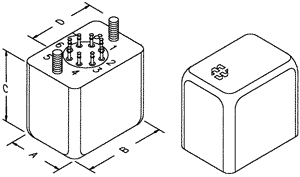

850 Line Art 850 Base + Schematic
