Style A Mounting
Style B Mounting
Style A
Style B
Style V Mounting
Style V

OPEN STYLE
DUAL PRIMARY &
DUAL SECONDARY


FILAMENT &
L.V. RECTIFIER USE
TRANSFORMERS

Key Features:

Cat. No.
VA
Secondary VAC (RMS)
Mtg. Style
Dimensions (Inches)
Mtg. Hole
Weight
lbs.

Price

PayPal

Series (C.T.)
Parallel
A
B
C
D
E
266M2
7.5
2.5V @ 3A
1.25V @ 6A
A
2.82
1.69
1.69
2.38
-
0.187
0.76
 $25.93
266M5
15
5V @ 3A
2.5V @ 6A
A
3.25
2.06
2
2.81
-
0.187
1.06
 $32.41
266F6
1.89
6.3V @ 0.3A
3.15V @ 0.6A
A
2.06
1.38
1.25
1.75
-
0.187
0.2
 $32.41
266GB6
3.78
6.3V@ 0.6A
3.15V @ 1.2A
A
2.38
 1.48
1.43
2
-
0.187
0.4
 $24.32
266JB6
7.6
6.3V @ 1.2A
3.15V @ 2.4A
A
2.82
1.69
1.69
2.38
-
0.187
0.7
 $18.97
266L6
12.6
6.3V @ 2A
3.15V @ 4A
A
3.25
2.06
2
2.81
-
0.187
0.87
 $32.41
266M6
18.9
6.3V @ 3A
3.15V @ 6A
A
3.25
2.06
2
2.81
-
0.187
1.15
 $34.58
266PA6
37.8
6.3V @ 6A
3.15V @ 12A
A
4
2.25
2.62
3.56
-
0.187
1.04
 $43.22

266G9
4.5
9V @ 0.5A
4.5V @ 1A
A
2.38
1.48
1.43
2
-
0.187
0.4
 $34.58
266GD12
8.4
12V @ 0.7A
6V @ 1.4A
A
2.82
1.69
1.69
2.38
-
0.187
0.76
 $30.25
266JB12
14.4
12V @ 1.2A
6V @ 2.4A
A
3.25
2.06
2
2.81
-
0.187
1
 $32.41
266PA12
72
12V @ 6A
6V @ 12A
A
4.03
2.50
2.63
3.56
-
0.187
2.63
 $66.99
266F12
3.78
12.6V @ 0.3A
6.3V @ 0.6A
A
2.38
1.5
1.45
2
-
0.187
0.4
 $11.91
266G12
6.3
12.6V @ 0.5A
6.3V @ 1A
A
2.81
1.6
1.68
2.38
-
0.187
0.6
 $34.58
266J12
12.6
12.6V @ 1A
6.3V @ 2A
A
3.25
1.75
2
2.81
-
0.187
1
 $32.41
266K12
18.9
12.6V @ 1.5A
6.3V @ 3A
A
3.25
2.06
2
2.81
-
0.187
1.15
 $32.41
266L12
31.5
12.6V @ 2.5A
6.3V @ 5A
A
3.69
2.2
2.31
3.13
-
0.187
1
 $35.66
266M12
38
12.6V @ 3A
6.3V @ 6A
A
3.69
2.31
2.31
3.13
-
0.187
1.6
 $32.41
266N12
50.4
12.6V @ 4A
6.3V @ 8A
A
4
2.4
2.62
3.56
-
0.187
2.69
 $36.74
266G14
7
14V @ 0.5
7V @ 1A
A
2.81
1.6
1.68
2.38
-
0.187
0.6
 $25.93
266J14
14
14V @ 1A
7V @ 2A
A
3.25
2.06
2
2.81
-
0.187
1.2
 $32.41
266L14
28
14V @ 2A
7V @ 4A
A
3.69
2
2.31
3.13
-
0.187
1.63
 $34.58
266PA14
84
14V @ 6A
7V @ 12A
B
2.81
2.85
3.44
2.25
2.38
.203 x .375
4
 $75.64
266G16
8
16V @ 0.5A
8V @ 1A
A
2.81
1.6
1.68
2.38
-
0.187
0.78
 $30.25
266J16
16
16V @ 1A
8V @ 2A
A
3.25
1.9
2
2.81
-
0.187
1.2
 $34.58
266L16
35.2
16V @ 2.2A
8V @ 4.4A
A
3.69
2.2
2.35
3.13
-
0.187
1.9
 $38.91
266M16
48
16V @ 3A
8V @ 6A
A
4
2.3
2.62
3.56
-
0.187
2.5
 $34.58
266K18
27
18V @ 1.5A
9V @ 3A
A
3.69
1.97
2.31
3.13
-
0.187
1.58
 $16.48
266M18
54
18V @ 3A
9V @ 6A
A
4.03
2.5
2.63
3.56
-
0.187
2.68
 $47.54
266P18
90
18V @ 5A
9V @ 10A
B
2.81
3.06
3.41
2.25
2.5
.203 x .375
3.9
 $77.80
266F20
6
20V @ 0.3
10V @ 0.6A
A
2.81
1.6
1.68
2.38
-
0.187
0.6
 $34.58
266G20
10
20V @ 0.5A
10V @ 1A
V
2.88
1.9
2.37
2.38
-
0.187
1
 $30.25
266L20
40
20V @ 2A
10V @ 4A
A
4
2.25
2.62
3.56
-
0.187
2.63
 $43.22
266M20
60
20V @ 3A
10V @ 6A
A
4.03
2.5
2.63
3.26
-
0.187
2.68
 $62.68
266C24
2
24V @ 0.085A
12V @ 0.17A
A
2.06
1.38
1.19
1.75
-
0.187
0.28
 $17.29
266EA24
4.8
24V @ 0.2A
12 @ 0.4A
A
2.38
1.6
1.45
2
-
0.187
0.45
 $19.45
266F24
7.2
24V @ 0.3A
12V @ 0.6A
A
2.81
1.6
1.68
2.38
-
0.187
0.6
 $34.58
266FB24
9.6
24V @ 0.4A
12V @ 0.8A
A
2.82
1.69
1.69
2.38
-
0.187
0.75
 $30.25
266G24
12
24V @ 0.5A
12V @ 1A
V
2.88
1.9
2.37
2.38
-
0.187
1
 $32.41
266GD24
16.8
24V @ 0.7A
12V @ 1.4A
A
3.25
2.06
2
2.81
-
0.187
1.15
 $34.58
266J24
24
24V @ 1A
12V @ 2A
V
3.13
2
2.75
2.81
-
0.187
1.6
 $16.48
266L24
48
24V @ 2A
12V @ 4A
V
3.56
2.25
3.12
3.13
-
0.187
2.25
 $24.74
266M24
72
24 V @ 3A
12V @ 6A
A
4.03
2.5
2.63
3.56
-
0.187
2.68
 $66.99
266N24
96
24V @ 4A
12V @ 8A
B
2.81
3.06
3.38
2.25
2.5
.203 x .375
4.4
 $77.80

266P24
120
24V @ 5A
12V @ 10A
B
3.13
2.86
3.81
2.5
2.5
.203 x .375
5.2
 $82.12
266PA24
144
24V @ 6A
12V @ 12A
B
3.13
3.75
3.81
2.5
2.88
.203 x .375
6
 $97.24
266S24
240
24V @ 10A
12V @ 20A
B
3.44
3.6
4.3
2.75
3
.203 x .375
8.6
 $118.86
266J25
25.2
25.2V @ 1A
12.6V @ 2A
A
3.25
2.06
2
2.81
-
0.187
1.25
 $34.58
266L25
50.4
25.2V @ 2A
12.6V @ 4A
A
4
2.25
2.62
3.56
-
0.187
2.69
 $36.74
266LH25
70.56
25.2V @ 2.8A
12.6V @ 5.6A
A
4
2.25
2.62
3.56
-
0.187
2.63
 $66.99
266M25
75
25V @ 3A
12.5V @ 6A
A
4.5
2.5
2.9
4
-
0.187
3.25
 $66.99
266J26
26.5
26.8V @ 1A
13.4V @ 2A
A
3.25
2.06
2
2.81
-
0.187
1.3
 $34.58
266L28
56
28V @ 2A
14V @ 4A
B
2.5
2.5
3.06
2
2.25
.203 x .375
2.75
 $47.54
266K35
52.5
35V @ 1.5A
17.5V @ 3A
A
4
2.25
2.62
3.56
-
0.187
2.25
 $47.54
266G36
18
36V @ 0.5A
18V @ 1A
A
3.25
2.06
2
2.81
-
0.187
1.07
 $34.58
266J36
36
36V @ 1A
18V @ 2A
A
3.69
1.97
2.31
3.13
-
0.187
1.78
 $43.22
266J48
48
48V @ 1A
24V @ 2A
V
3.56
2.2
3.12
3.13
-
0.187
2.5
 $32.41
266L48
96
48V @ 2A
24V @ 4A
B
2.81
3.06
3.38
2.25
2.5
.203 x .375
4.5
 $77.80
266M48
144
48V @ 3A
24V @ 6A
B
3.13
3.06
3.84
2.5
2.5
.203 x .375
6
 $97.24
266N48
192
48V @ 4A
24V @ 8A
B
3.44
3.62
4.22
2.75
3
.203 x .375
8
 $103.74



Mechanical & Schematic Data:

Confused about phasing or
primary & secondary connections?
Connection FAQ Link

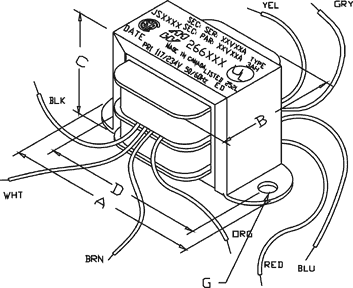

Style A Drawing
Style A

Schematic
Style B Drawing
Style B
Style V Drawing
Style V
