Panel Meters

Are you looking for Digital


Analog DC Current Panel Meters
JM1001 1mA / 2.75" x 2.38" $9.50	JM1010 10mA / 2.75" x 2.38" $9.50	JM10100 100mA / 2.75" x 2.38" $9.50
JM10250 250mA / 2.75" x 2.38" $9.50	JM10500 500mA / 2.75" x 2.38" $9.50	JM101000 1A / 2.75" x 2.38" $9.50
JM102000 2A / 2.75" x 2.38" $9.50	JM103000 3A / 2.75" x 2.38" $9.50	JM105000 5A / 2.75" x 2.38" $9.50
JM1010A 10A / 2.75" x 2.38" $9.50	JM1020A 20A / 2.75" x 2.38" $9.50	JM1030A 30A / 2.75" x 2.38" $9.50
Analog DC Voltage Panel Meters
JM1020V 20V / 2.75" x 2.38" $9.50	JM1030V 30V / 2.8" x 2.4" $10.20
Analog AC Current Panel Meters
JM205A 5A / 2.75" x 2.38" $9.50	JM2010A 10A / 2.75" x 2.38" $9.50	JM2015A 15A / 2.75" x 2.38" $9.50
JM2025A 25A / 2.75" x 2.38" $9.50	JM2030A 30A / 2.75" x 2.38" $9.50
Analog AC Voltage Panel Meters
JM10150V 150V / 2.8" x 2.4" $9.50		JM10300V 300V / 2.8" x 2.4" $10.20

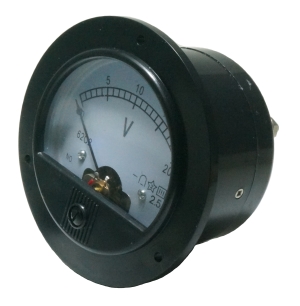

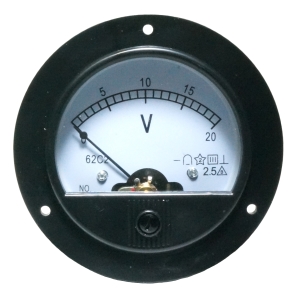

0 - 20V DC Meter
Ø 90mm
$15.00

Brand New Small Panel Meters

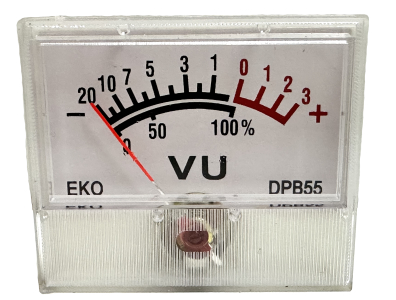

VU Meter-1 35mm x 35mm $16.99	VU Meter-2 40mm x 40mm $8.00	VU Meter-3 55mm x 47mm $10.00
VU Meter-4 90mm x 70mm $24.90

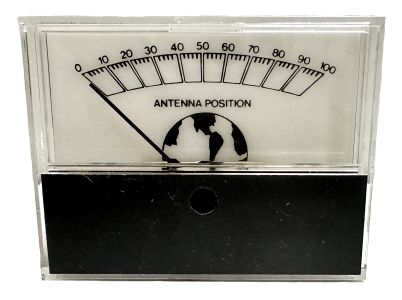

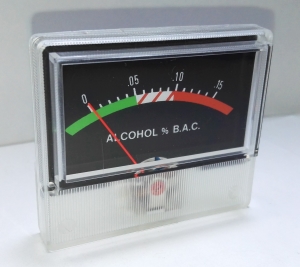

Antenna Position 57mm x 45mm $3 .00	Alcohol Meter 55mm x 48mm $3 .00	0-150V AC Meter 40mm x 40mm $5.00
0-350V AC Meter 55mm x 48mm $5.00	0-50V DC Meter 55mm x 48mm $5.00	0-20A DC Meter 55mm x 48mm $5.00
Signal Strength Meter 55mm x 48mm $5.00

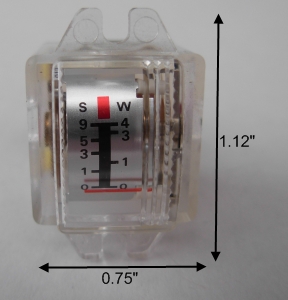

Level Meter

Level Meter-1

$ 3.00

Digital Panel Meters

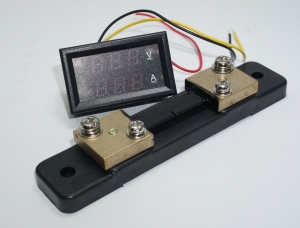

Digital / Volt Meter with Shunt $19.00	4.5 to 30V 0 to 50Amp size: 1.87" x 1.12" Length of shunt: 4.7" Click here for Diagram

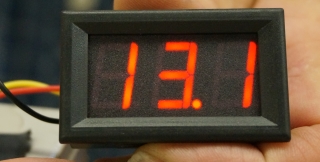

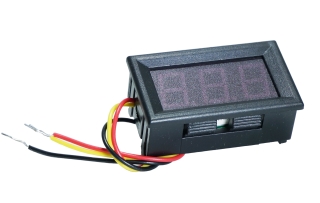

LED - 4-30 V DC $12.00	Reads : 0-199 Volts 4-30 Volts Display: Red LED size: 1.9" x 1.15"
LED - 4-30 V DC $11.00	Reads : 3.3-30Volts Display: Blue LED size: 0.91" x 0.55"

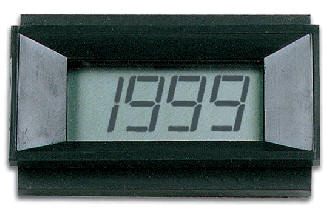

LCD - 9V DC PMLCD $17.00	Features 3 1/2 LCD panel meter single 9V DC operation power consumption: 1mA DC high input impedance: > 100Mohm Specifications display: 3 1/2-digit LCD input sensitivity: 200mV FS power supply: 9V DC (7 - 12V DC) decimal point selection: with wire jumper automatic polarity indication figure height: 0.52" sampling rate: 2 - 3 readings / sec. guaranteed zero reading for 0V input high input impedance: > 100Mohm accuracy: ± 0.5% power consumption: 1mA DC size: 2.7" x 1.7"

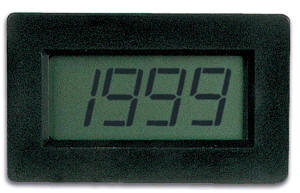

LCD - ECONOMIC PMLCDL $9.99	Features low-cost version single 8/12V DC (1mA) operation high input impedance: > 100Mohm dimensions: 2.7" x 1.7" Specifications display: 3 1/2-digit LCD input sensitivity: 200mV FS power supply: 9V DC (7 - 12V DC) decimal point selection: with wire jumper automatic polarity indication figure height: 0.52" sampling rate: 2 - 3 readings / sec. guaranteed zero reading for 0V input high input impedance: >100Mohm accuracy: ± 0.5% power consumption: 1mA DC size: 2.7" x 1.7"

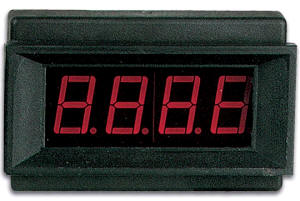

LED - 9V DC PMLED $16.60	Features 3 1/2 LED digital panel meter single 9V DC-operation high input impedance: > 100Mohm Specifications display: 3 1/2 digit LED input sensitivity: 200mV FS power supply: 9V DC decimal point selection: with wire jumper automatic polarity indication figure height: 0.56" sampling rate: 2 - 3 readings / sec. guaranteed zero reading for 0V input high input impedance: > 100Mohm accuracy: ± 0.5% power consumption: 50 - 60mA size: 2.7" x 1.7"

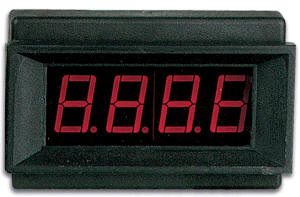

LED - 5V DC PMLED/5 $25.50	Features 3 1/2 LED digital panel meter single 5V DC operation high input impedance: > 100Mohm Specifications display: 3 1/2 digit LED input sensitivity: 200mV FS power supply: 5V DC decimal point selection: with wire jumper automatic polarity indication figure height: 0.56" sampling rate: 2 - 3 readings / sec. guaranteed zero reading for 0V input high input impedance: > 100Mohm accuracy: ± 0.5% power consumption: 50 - 60mA size: 2.7" x 1.7"

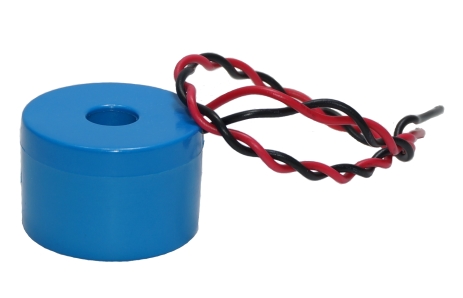

Current Transformer

2000 : 1 Ratio

$5.50
