"Classic" - Universal Primary Plate & Filament Power transformers

Key Features:

Universal primary with taps for 100, 120, 220 or 240 VAC, 50/60 Hz.
Designed for preamps, low power amps, general replacement, test equipment, etc.
Economical, two hole (.187 dia. = G) channel bracket or four hole, open frame - chassis mount.
Units include a Faraday shield between the primary and secondary windings.
Minimum 5" long leads.
For more selection check out our "300" series of universal plate & filament transformers.

Part No.	VA	A.C. High Voltage Secondary #1 RMS	A.C. Filament Sec. #2 RMS	A.C. Filament Sec. #3 RMS	Figure #	Dimensions (Inches)
Part No.	VA	A.C. High Voltage Secondary #1 RMS	A.C. Filament Sec. #2 RMS	A.C. Filament Sec. #3 RMS	Figure #	A	B	C	D	E	G
260A $70.67	22	400V C.T.@40ma.	6.3V C.T. @ 1A	-	1	3.25	2.00	2.00	2.81	-	0.19
260A6 $65.59	57	740V C.T.@60ma	6.3V C.T. @ 2A	-		2.5	2.155	3	-	-	-
260C $82.15	65	500V C.T.@85ma.	5V @ 2A	6.3V C.T. @ 2A	1	4.03	2.65	2.62	3.56	-	0.19
260E $95.19	80	450V C.T.@115ma.	5V @ 2A	6.3V C.T. @ 3A		3.00	3.06	2.53	2.50	2.40	0.21 x 0.38
260G $117.14	175	550V C.T.@230ma.	5V @ 3A	6.3V C.T. @ 5A		3.75	3.50	3.13	3.25	3.25	0.20 x 0.38
260J $128.56	152	650V C.T.@173ma.	5V @ 2A	6.3V C.T. @ 4A	2	3.75	3.13	3.13	3.125	2.75	0.22 x 0.56
260K $129.98	197	650V C.T.@230ma.	5V @ 3A	6.3V C.T. @ 5A	2	4.50	3.25	3.75	3.75	3.00	0.22 x 0.56
260M $137.23	248	700V C.T.@288ma.	5V @ 3A	6.3V C.T. @ 5A	2	4.50	3.25	3.75	3.75	3.00	0.22 x 0.56

Mechanical Data:


Figure #1	Figure #2

Schematic Data:

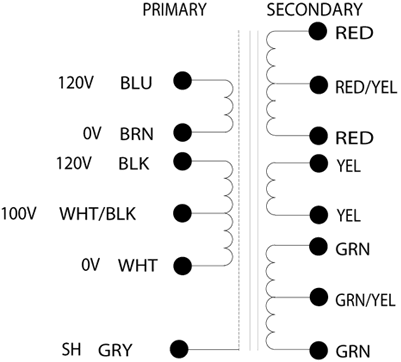

Color Code Schematic

NOTES:

1) These units are designed to run with BOTH primary windings energized for maximum efficiency (see wiring table below).
2) The gray wire (connected internally to the core) - see above - marked SH (shield) should remain grounded to the chassis.

Primary Wiring Table:

Primary Supply	Primary Wiring Diagram
100 VAC
120 VAC
220 VAC
240 VAC
