Tube Guitar Amplifier - Output Transformers 1750 Series
Replacement & upgrades

Features

* Designed for drop in replacement of original units.
* Physically, parts were designed to look similar to original factory units (where possible).
* Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
* Units are vacuum impregnated with polyurethane varnish for quiet and long life operation.
* Output transformers marked UPGRADE (below) allow for more versatility by added secondary connections that did not exist on the original units.



          Fender ( Output Transformers )

Part
Number

Reader
File

 Amplifier
Model Names		 Similar Fender
P/N`s*		 Pri
Ohms		 Sec
Ohms		 Amplifier
Type		 Watts

Price

Paypal
1750A - - 22,800 8 Single
Ended		 3.5 $35.92

1750AB - - 9,000 8 Push-Pull 12 $81.87

1750AX - - 7,500 8 Single
Ended		 3.5 $35.13

1750B - - 5,482 8 Single
Ended		 10 $45.44

1750C Bronco* Champ* 125A35A,022905,125A3A 5,000/8,000 3.2 Single
Ended		 5 $43.89

1760C Bronco* Champ* 125A35A,022905,125A3A 5,000/8,000 3.2,8,16 Single
Ended		 5 $54.87

1760CP Bronco* Champ* 125A35A,022905,125A3A 5,000/8,000 4,8 Single
Ended		 5 $70.27

1750D - - 2,350 4,8,16 Push-Pull 100 $120.69

1750E Deluxe 5E3* 50246 8,500 C.T. 8 Push-Pull 15 $49.85

1750EP Deluxe 5E3* 50246 8,500 C.T. 8 Push-Pull 15 $69.43

1760E Deluxe 5E3* 50246 8,500 C.T. 4,8,16 Push-Pull 15 $58.07

1750F Blues Junior* 49969 6,950 C.T. 8 Push-Pull 15 $53.07

1751M Vinrolux Tweed   8,000 C.T. 4,8,16 Push-Pull 15 $51.46

1760F Blues Junior* 49969 6,950 C.T. 4,8,16 Push-Pull 15 $58.38

1750H  Deluxe* Deluxe 68 Custom
Reverb* Deluxe Reverb 65 Reissue*		 125A1A,022640,041318 6,600 C.T. 8 Push-Pull 20 $57.37

1760H  Deluxe* Deluxe 68 Custom
Reverb* 		125A1A,022640,041318 6,600 C.T. 4,8,16 Push-Pull 20 $72.28

1750J Bandmaster* 125A6A,022848,125A7A 4,000 C.T. 4 Push-Pull 40 $69.15

1760J Bandmaster* 125A6A,022848,125A7A 4,000 C.T. 4,8,16 Push-Pull 40 $74.62

1750JA Deluxe Blues* 47269 4,250 C.T. 4,8 Push-Pull 40 $81.19

1760JB Bandmaster* 45216,1846,1848 6,000 C.T. 2.67,4,8 Push-Pull 40 $79.00

1750K Bassman* 125A9A,022855 4,000 C.T. 2 Push-Pull 50 $108.05

1760K Bassman* 125A9A,022855 4,000 C.T. 2,4,8 Push-Pull 50 $118.80

1750KA Bassman 59 Reissue* Concert* 36485,125A9A,022855 4,150 C.T. 2 Push-Pull 50 $108.05

1750L Bassman* 022871,125A13A 4,200 C.T. 4 Push-Pull 60 $106.27

1760L Bassman* 022871,125A13A 4,200 C.T. 4,8,16 Push-Pull 60 $116.94

1750M Super Concert 93* 41754 4,200 C.T. 2,4,8 Push-Pull 60 $108.05

1750W Bassman 100* 125A29A,022689,022889,022899,
037612		 2,000 C.T. 4 Push-Pull 100 $127.96

1760W Bassman 100* 125A29A,022689,022889,022899,
037612		 2,000 C.T. 4,8,16 Push-Pull 100 $127.96

1750WA Bassman 100* 125A29A,022689,022889,022899,
037612		 2,000 C.T. 2,4,8 Push-Pull 100 $179.07

1750WR Bassman 135* 13691 2,000 C.T. 4,8 Push-Pull 135 $175.25

          Marshall ( Output Transformers )

Part
Number		 Reader
File		 Amplifier
Model Names		 Similar Marshall
P/N`s*		 Pri
Ohms		 Sec
Ohms		 Amplifier
Type		 Watts Price Paypal
1750FA DSL15H DSL-15 OPT 7,000 C.T. 8,16 Push-Pull 15 $65.86

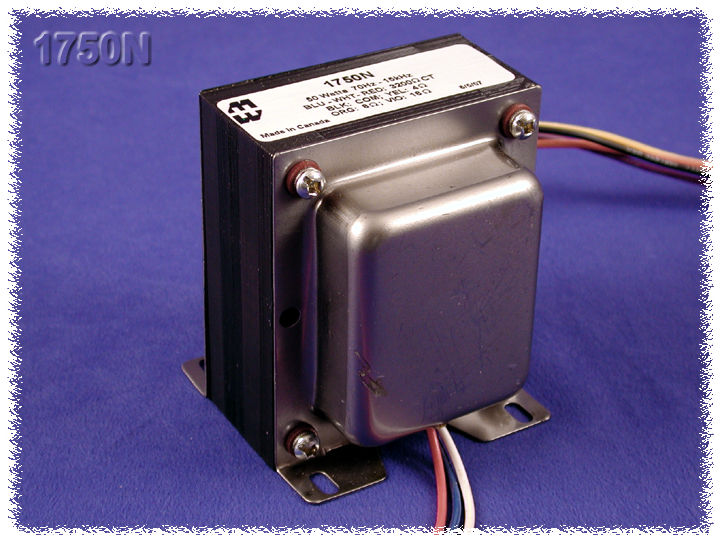

1750N JMP,JCM 800 - 3,200 C.T. 4,8,16 Push-Pull 50 $118.50

1750NA JTM30,JTM60 Drake 292-772 6,000 C.T. 8,16 Push-Pull 30-60 $61.43

1750P JCM 900 - 126,500,
2,000 		2,4,8,16 Push-Pull 50 $127.05

1750PA 18 Watt Combo - 8,400 C.T. 4,8,16 Push-Pull 18 $51.58

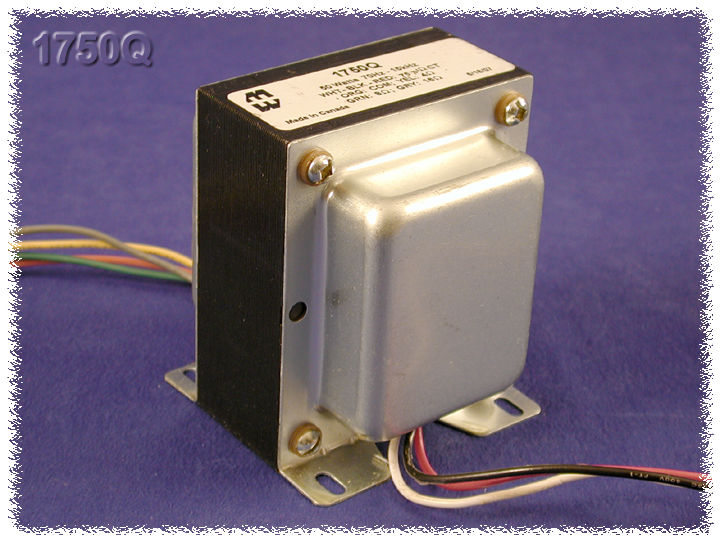

1750Q JTM 45 - 7,371 C.T. 4,8,16 Push-Pull 50 $135.58

1750U JMP,JCM 800 - 1,700 C.T. 4,8,16 Push-Pull 100 $153.64

1750X JCM 900 - 126,500,
2,000 		2,4,8,16 Push-Pull 100 $164.58

             VOX ( Output Transformers )

Part
Number		 Reader
File		 Amplifier
Model Names		 Similar Marshall
P/N`s*		 Pri
Ohms		 Sec
Ohms		 Amplifier
Type		 Watts Price Paypal
1750T AC30 Reissue - 4,000 C.T. 8,16 Push-Pull 30 $142.63

1750V AC30 Vintage - 4,000 C.T. 8,16 Push-Pull 30 $153.64

1750Y AC 15 - 6,200 C.T. 8 Push-Pull 15 $115.26

             Yorkville/Traynor ( Output Transformers )

Part
Number		 Reader
File		 Amplifier
Model Names		 Similar Marshall
P/N`s*		 Pri
Ohms		 Sec
Ohms		 Amplifier
Type		 Watts Price Paypal
1750G Replaces 92105 A1312 3,800 C.T. 4,8,16 Push-Pull 50 $186.52

1750R Replaces 98694 A1301 2,000 C.T. 4,8,16 Push-Pull 100 $226.11

1750S Bass Mate YBA-2B A1339 5,100 C.T. 8 Push-Pull 25 $59.26

1750Z Bass Mate YBA-2 A1313 10,000 C.T. 8 Push-Pull 20 $66.28

93405 - YBA-3 A1332 1,900 C.T. 8 Push-Pull 120 - -

              Part number 93405 is built by special order only.

              Orange ( Output Transformers )

Part
Number		 Reader
File		 Amplifier
Model Names		 Similar Marshall
P/N`s*		 Pri
Ohms		 Sec
Ohms		 Amplifier
Type		 Watts Price Paypal
1750ORF Rocker 30 OT119SL 6,000 C.T. 8,16 Push-Pull 35 $79.84


              Gibson ( Output Transformers )

Part
Number		 Reader
File		 Amplifier
Model Names		 Similar Marshall
P/N`s*		 Pri
Ohms

Sec
Ohms

Amplifier
Type

Watts

Price

Paypal
1751A Goldtonen GA-15 RV* - 8,000 C.T

5,3,8,16

Push-Pull

15

$99.58

12-12-2021
